| Material: |

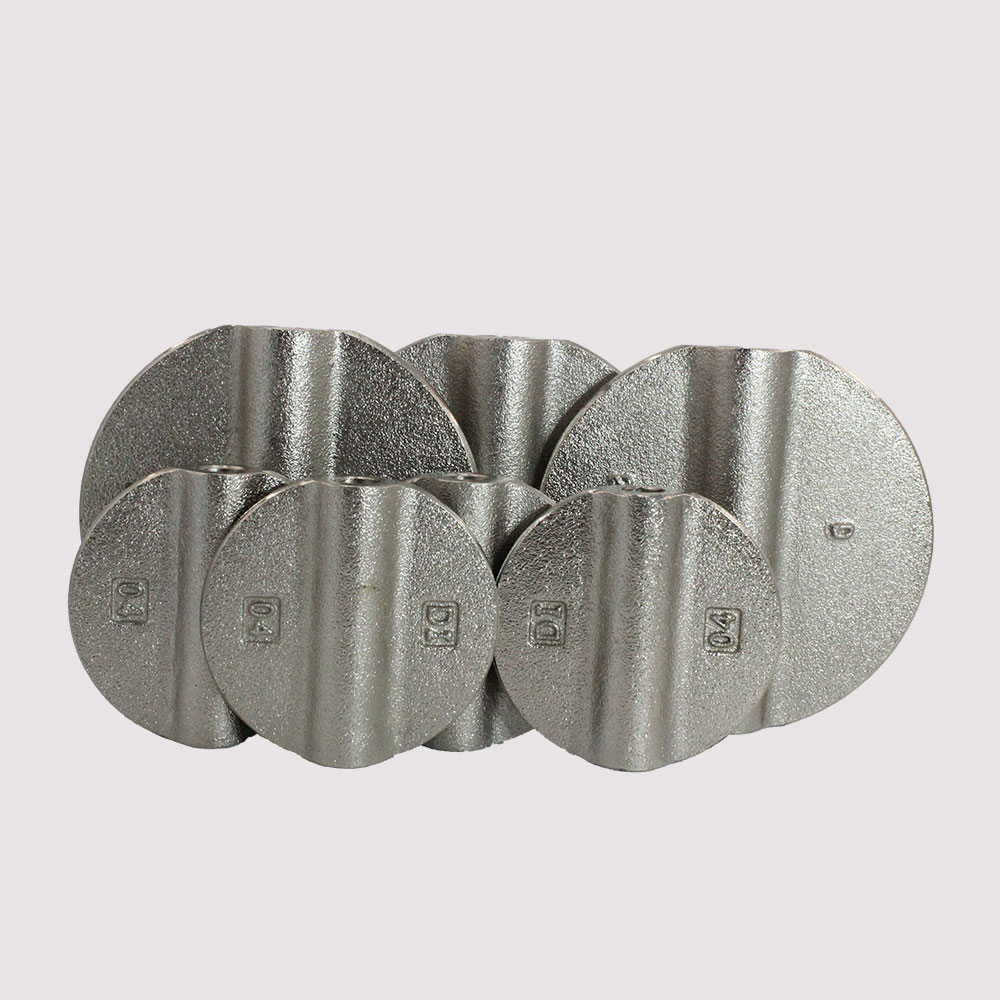

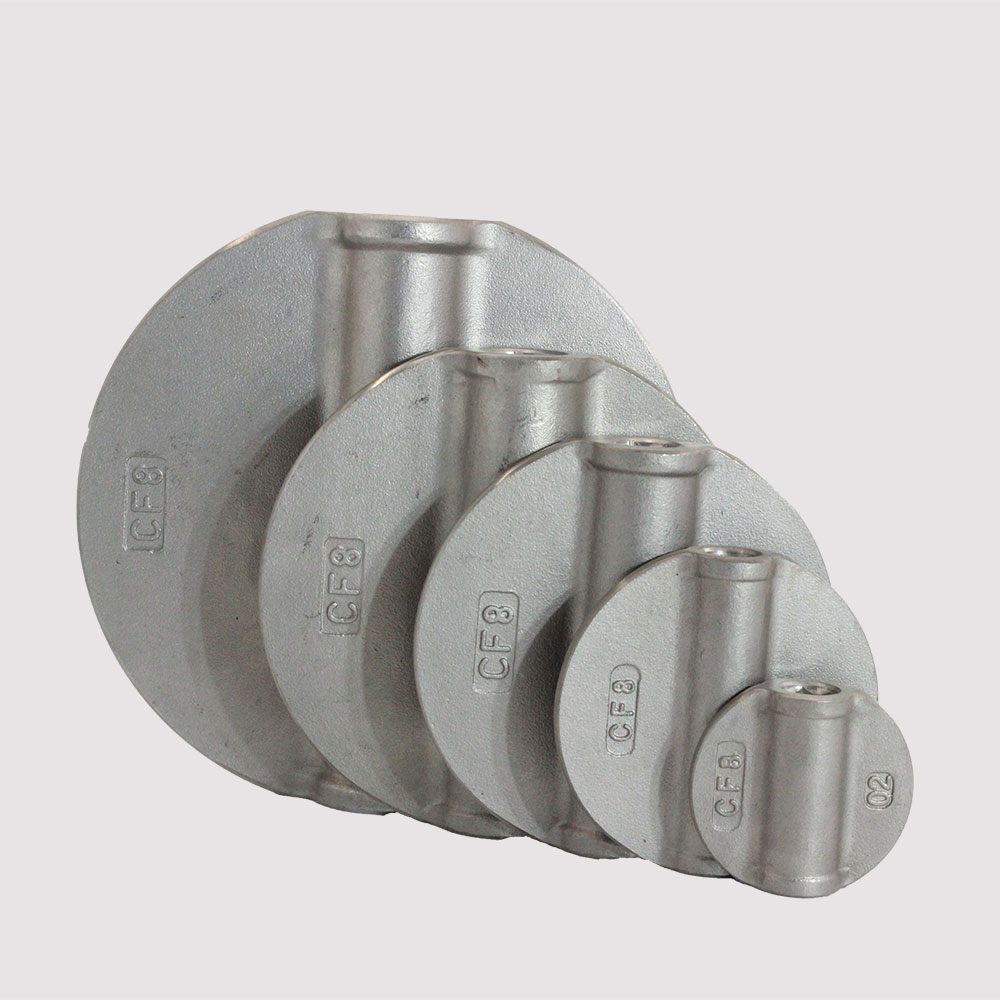

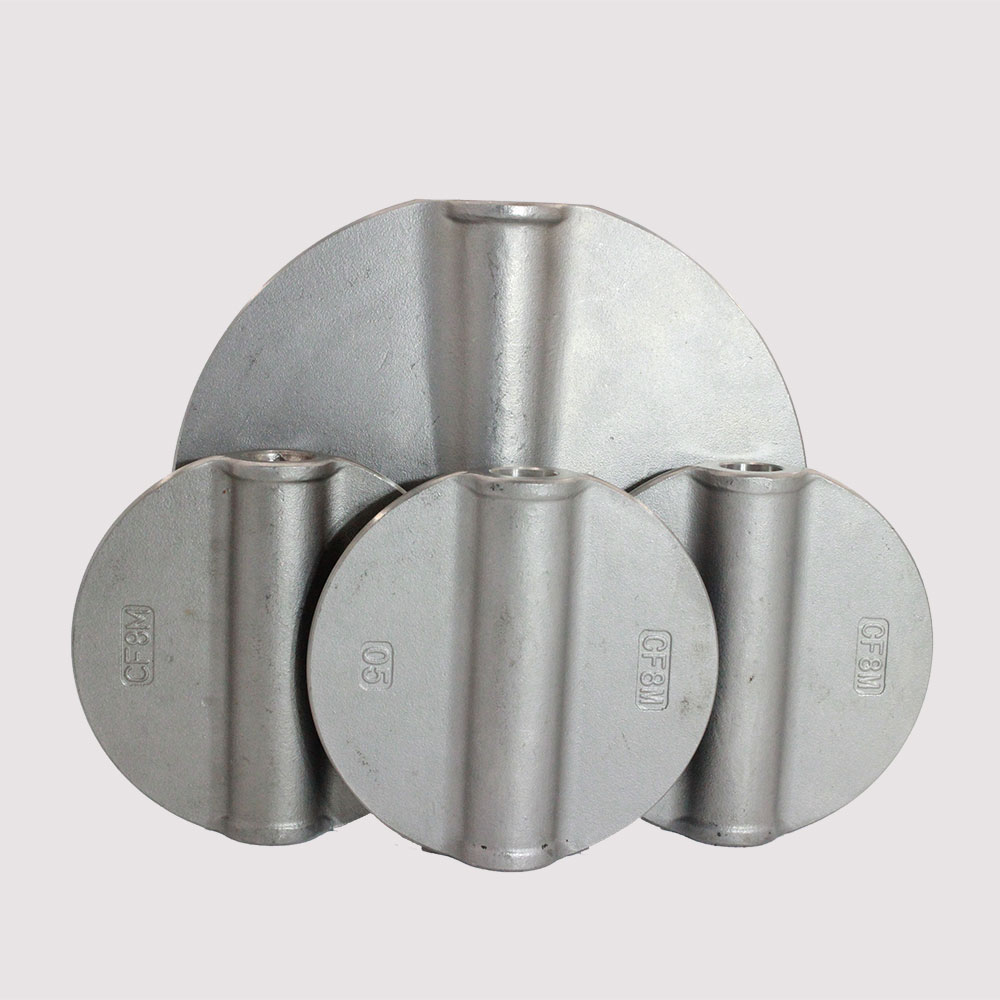

DI/CF8/CF8M/CF3/CF3M/Aluminium Bronze/DI+EPDM/DI+PTFE/DI+ spraying |
| Type: |
One stem/Double stem |
| Size: |
DN40-DN1200 |
|

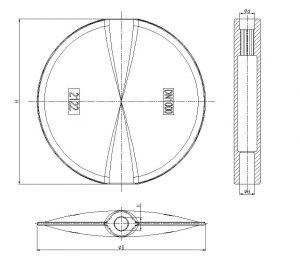

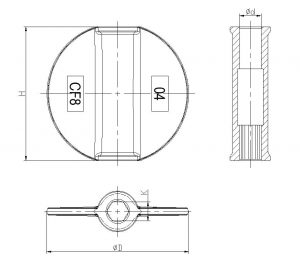

DN |
D |
H |
d |
K |
|
|
1.5″ |
DN40 |
42.7 |
37.2 |
12.7 |
11.5 |
|
2″ |
DN50 |
52.6 |
46.6 |
12.7 |
11.5 |
|
2.5″ |
DN65 |
64.4 |
59.4 |
12.7 |
11.5 |
|
3″ |
DN80 |
78.8 |
75.1 |
12.7 |
11.5 |
|
4″ |
DN100 |
104.1 |
98.2 |
15.9 |
14 |
|
5″ |
DN125 |
123.3 |
117.1 |
19.1 |
17 |
|
6″ |
DN150 |
155.8 |
148 |
19.1 |
17 |
|
8″ |
DN200 |
202.5 |
195.8 |
22.3 |
20 |
|
10″ |
DN250 |
250.8 |
243 |
28.7 |
25 |
|
12″ |
DN300 |
301.6 |
292.8 |
31.8 |
29 |
|
14″ |
DN350 |
333.8 |
326.2 |
31.8 |
29 |
|
16″ |
DN400 |
389.6 |
379.8 |
33.5 |
29.15 |
|
18″ |
DN450 |
440.5 |
429 |
38.2 |
33.4 |
|
20″ |
DN500 |
491.6 |
480.2 |
41.4 |
36.2 |
|
24″ |
DN600 |
592.5 |
579.9 |
50.9 |
45 |
|
28″ |
DN700 |
695 |
674.4 |
63.6 |
57.1 |
|
32″ |
DN800 |
794.7 |
774.6 |
63.6 |
57.1 |
|
36″ |
DN900 |
864.7 |
846.2 |
75 |
67.2 |
|
40″ |
DN1000 |
965 |
943.7 |
85 |
76.2 |
|
44″ |
DN1100 |
1066 |
1047.5 |
95 |
85.2 |
|
48″ |
DN1200 |
1160.6 |
1139.9 |
105 |
95.2 |
