| Face to Face STD.: |
API594 |
| Test and Inspection STD.: |
API598 |
| Design & Manufacture STD.: |
API594 |
| Epoxy Spraying: |
RAL 5005 or customized |
| Documents Service: |
FORM E Certificate of Origin/Certificate of Material/Pressure Testing Report |
| Working Temperature: |
-20℃～120℃ |
|
Nominal Pressure: |
PN10/PN16/CLASS150 |
|

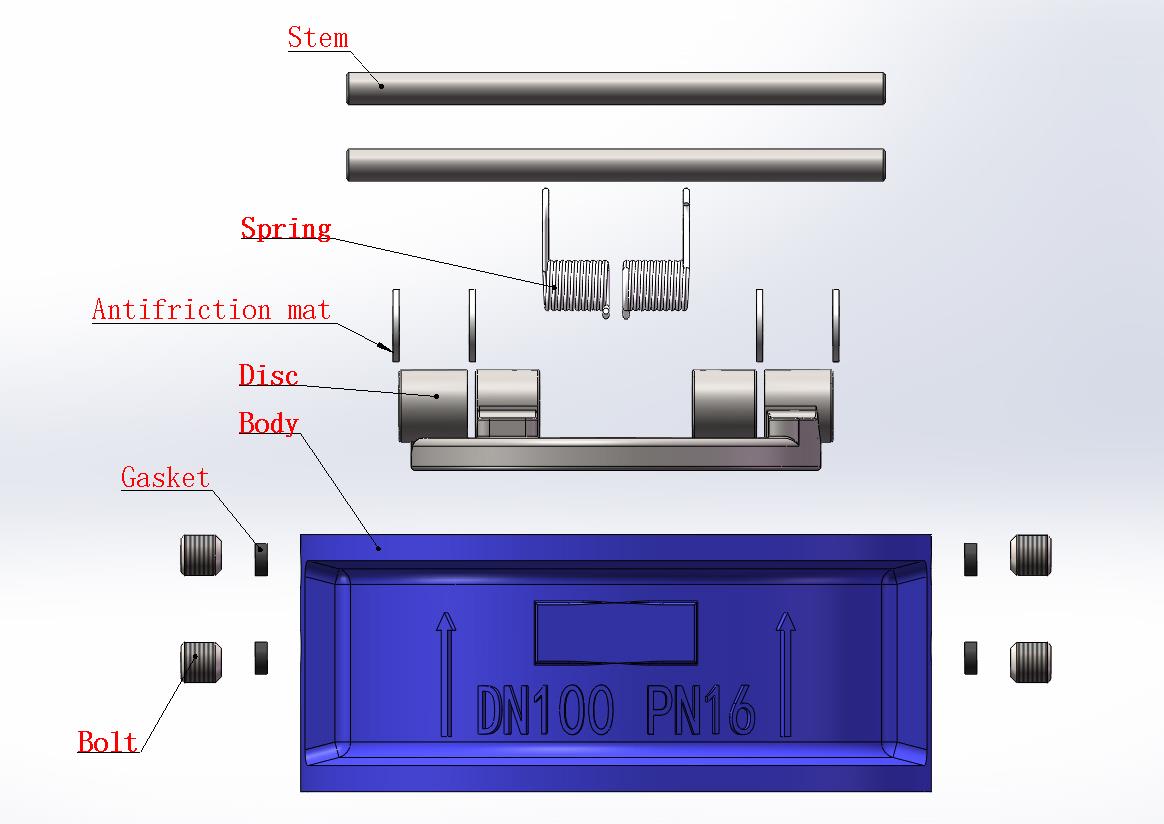

Available Material: |
|
| Body Material: |
Ductile iron |
| Disc Material: |
Ductile iron/CF8/CF8M |
| Stem Material: | Stainless Steel |
| Seat Material: | EPDM/NBR |
| Spring Material: | Stainless Steel |
| Gasket Material: |
PTFE |
|
Quality Standard: |
|
| Design & Manufacture Standard: |
API 594 |
| Face to Face Dimension Standard: |
API 594 |
| Test & Inspection Standard: |
API 598 |
|

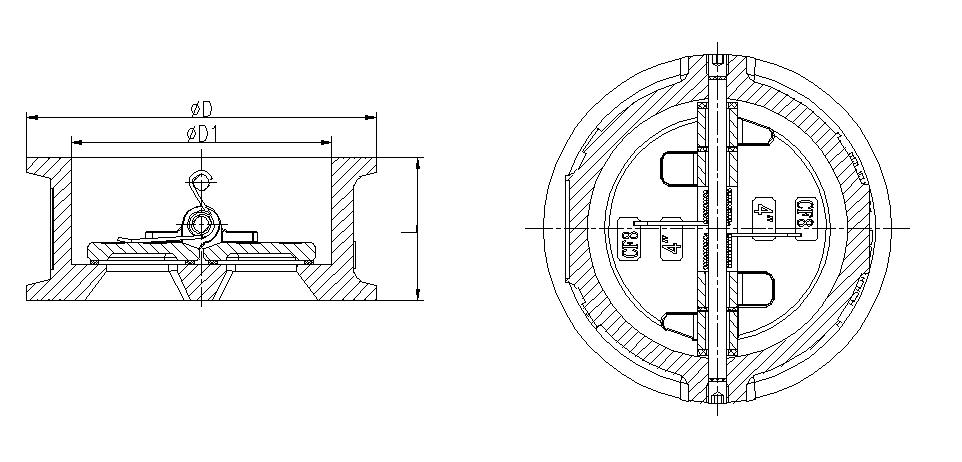

DN |
φD |
φD1 |
L |
|
|
2″ |
50 |
101 |
65 |
43 |
|
2.5″ |
65 |
118 |
80 |
46 |
|
3″ |
80 |
132 |
94 |
64 |
|
4″ |
100 |
157 |
117 |
64 |
|
5″ |
125 |
186 |
145 |
70 |
|
6″ |
150 |
213 |
170 |
76 |
|
8″ |
200 |
272 |
224 |
89 |
|
10″ |
250 |
328 |
265 |
114 |
|
12″ |
300 |
378 |
310 |
114 |
|
14″ |
350 |
438 |
360 |
127 |
|
16″ |
400 |
489 |
410 |
140 |
|
18″ |
450 |
539 |
450 |
152 |
|
20″ |
500 |
594 |
505 |
152 |
|
24″ |
600 |
695 |
624 |
178 |
|
28″ |
700 |
810 |
720 |
229 |
|
32″ |
800 |
917 |
825 |
241 |
1.Prevent the medium from flowing back.
2.Short structure length, suitable for working conditions with small installation space.
3.The valve plate closes quickly and the water hammer pressure is small.
4.Both horizontal pipes and vertical pipes can be used, easy to install.
5.Unobstructed flow channel and low fluid resistance.
6.The built-in wafer butterfly check valve has no external leakage points.
7.Adopt epoxy spraying(stronger adhesion and good weather resistance).
8.Pressure Testing Report,Certificate of Material and FORM E Certificate Of Origin can be provided.
Waterworks,Sewage treatment plant,Sugar factory,Drain pipe oil,Chemical industry,Pharmaceutical,Fertilizer,Electricity, Petrochemical,Papermaking,Mining,Liquefied gas,Drainage,Municipal,Urban construction
