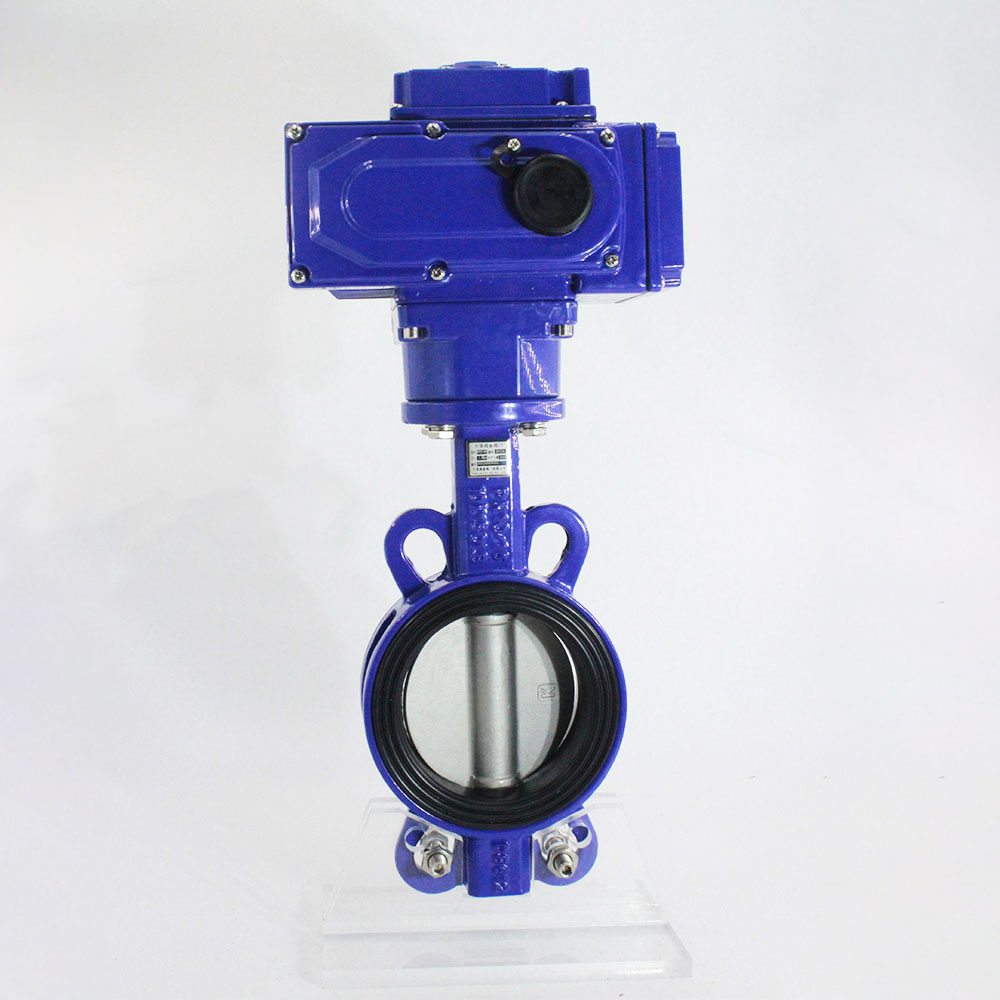

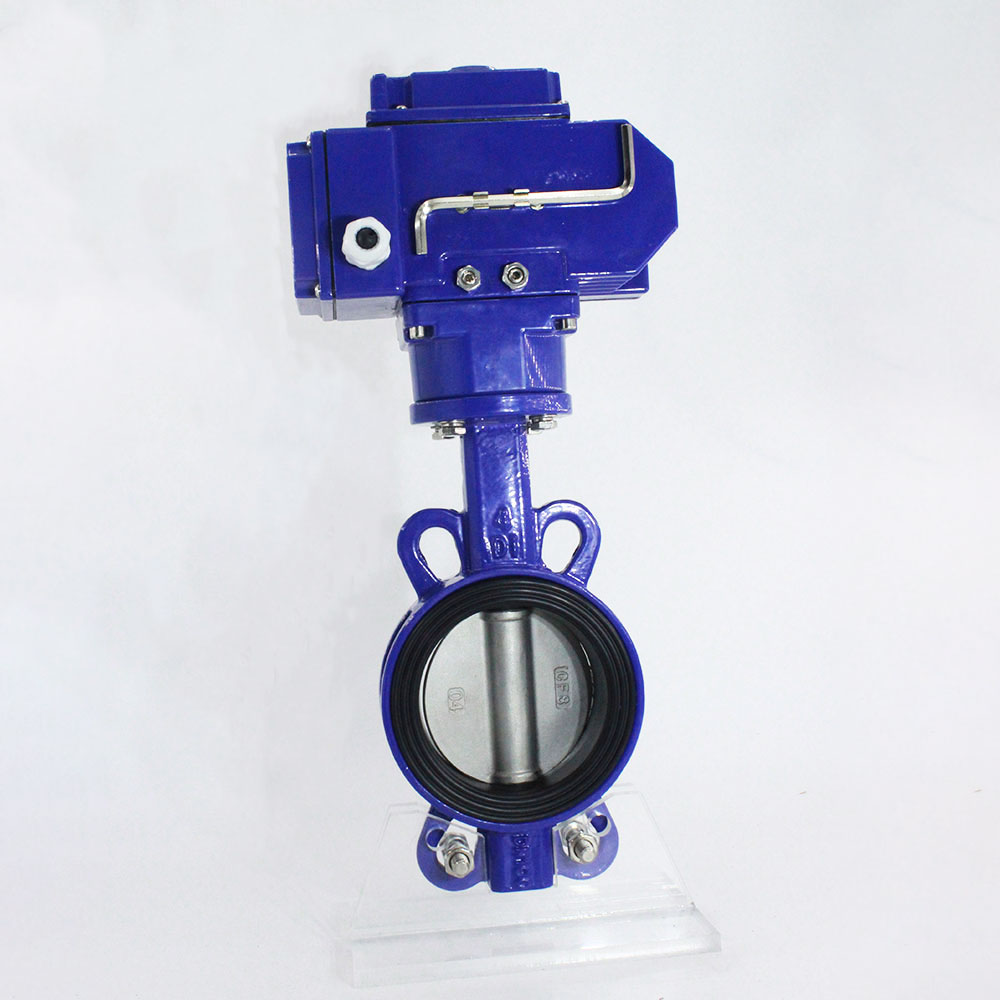

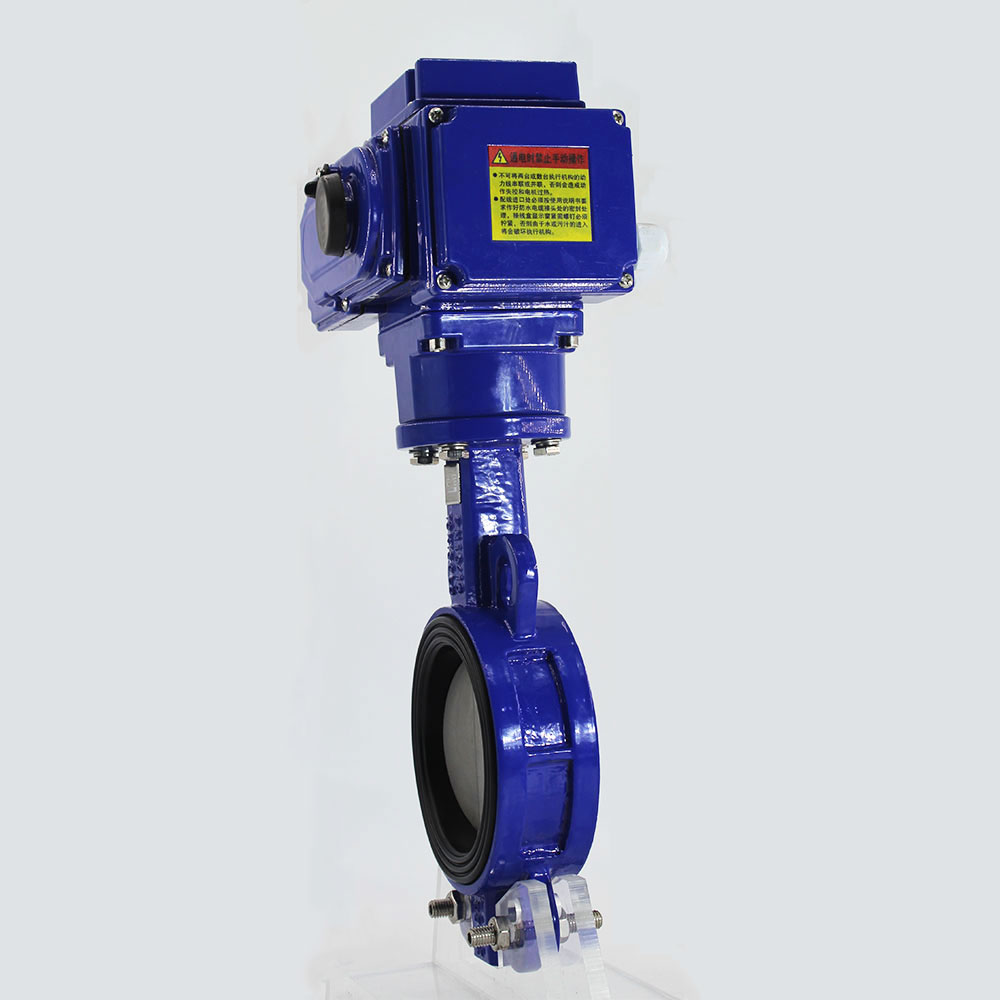

| Face to Face: |
API609 |
| Test and Inspection: |
API598 |
| Top Flange Standard: |
ISO5211 |
| Epoxy Spraying: |
RAL 5005 or customized |
| Documents Service: |
FORM E Certificate of Origin/Certificate of Material/Pressure Testing Report |
| Working Temperature: |
-20℃～120℃ |
|
Nominal Pressure: |
PN10/PN16/CLASS125/CLASS150/10K/5K |
|
Available Material: |
|
| Body Material: |
Ductile Iron |
| Disc Material: |
Ductile iron /CF8/CF8M/CF3/CF3M/1.4529/AL.Bronze C954 or C958 |
| Shaft Material: |
SS416/SS420/SS304/SS316/SS431 |
| Seat Material: |
EPDM material soft seated (can be replaced) |
|
Quality Standard: |
|
| Design & Manufacture Standard: |
API 609 |
| Face to Face Dimension Standard: |
API 609 |
| Test & Inspection Standard: |
API 598 |
|

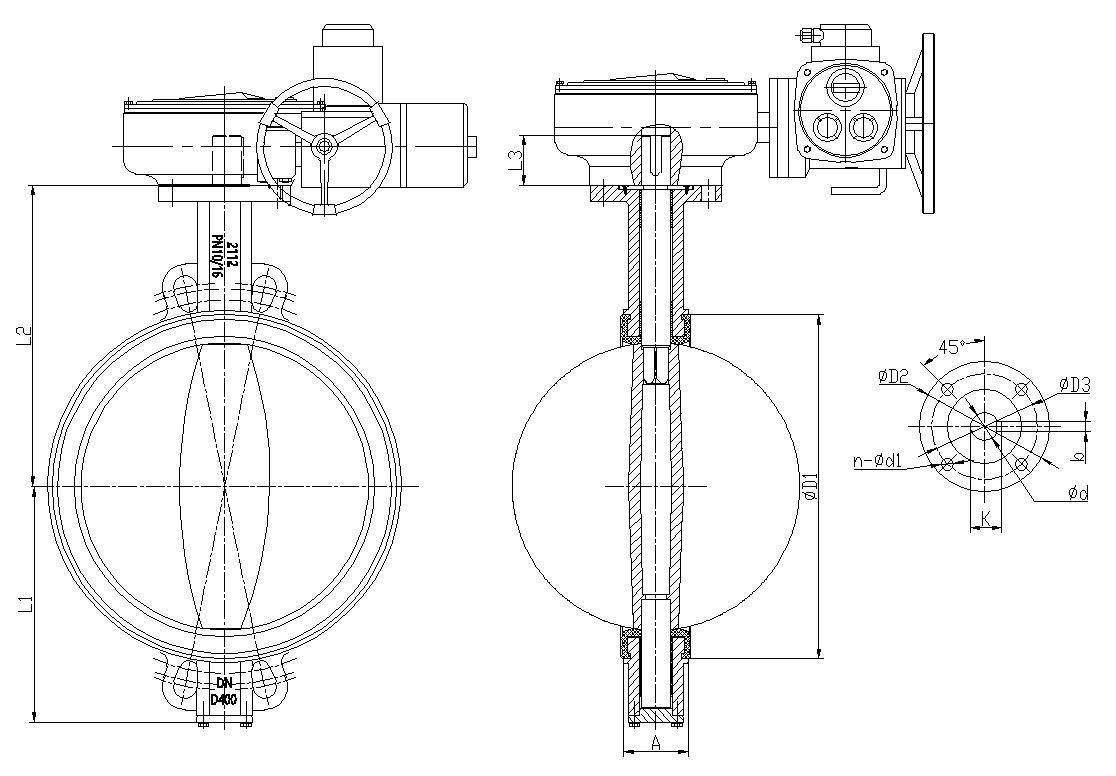

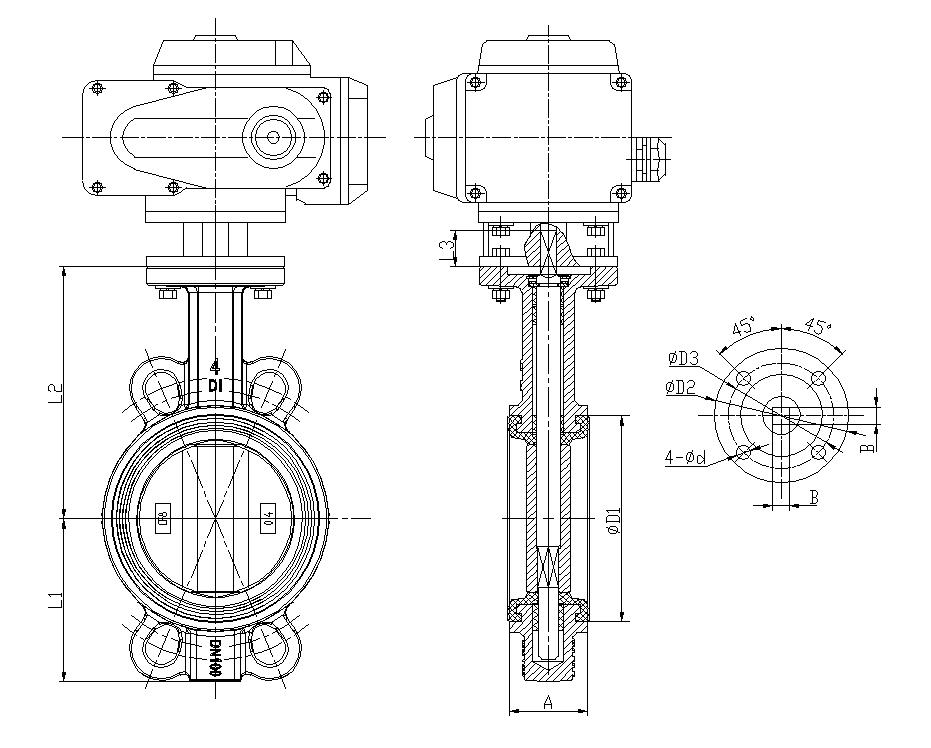

DN |
A |
D1 |
L1 |
L2 |
L3 |
B |
φD2 |
φD3 |
n-φd |
|
|
1.5″ |
DN40 |
34 |
62.5 |
55.5 |
111.5 |
25 |
9 |
65 |
50 |
4-8 |
|
2″ |
DN50 |
43 |
80 |
72 |
132 |
25 |
9 |
65 |
50 |
4-8 |
|
2.5″ |
DN65 |
46 |
95 |
86 |
138 |
25 |
9 |
65 |
50 |
4-8 |
|
3″ |
DN80 |
46 |
113 |
96 |
153 |
25 |
9 |
65 |
50 |
4-8 |
|
4″ |
DN100 |
52 |
135 |
108 |
167 |
28 |
11 |
90 |
70 |
4-10 |
|
5″ |
DN125 |
56 |
163 |
125 |
184 |
28 |
14 |
90 |
70 |
4-10 |
|
6″ |
DN150 |
56 |
190 |
138 |
195 |
28 |
14 |
90 |
70 |
4-10 |
|
8″ |
DN200 |
60 |
244 |
170 |
236 |
33 |
17 |
125 |
102 |
4-12 |
|
10″ |
DN250 |
68 |
298 |
209 |
266 |
33 |
22 |
125 |
102 |
4-12 |
|
12″ |
DN300 |
78 |
350 |
236 |
305 |
33 |
22 |
125 |
102 |
4-12 |
|
14″ |
DN350 |
78 |
397 |
271 |
327 |
45 |
22 |
125 |
102 |
4-12 |
|
DN |
A |
D1 |
L1 |
L2 |
L3 |
φd |
φD2 |
φD3 |
n-φd1 |
N-b |
K |
|
|
16″ |
DN400 |
85.5 |
456 |
320 |
403 |
52 |
33.15 |
175 |
140 |
4-18 |
1-10 |
36.2 |
|
18″ |
DN450 |
103 |
516 |
351 |
415 |
52 |
38 |
175 |
140 |
4-18 |
1-10 |
41 |
|
20″ |
DN500 |
125 |
556 |
386 |
466 |
64 |
41.15 |
175 |
140 |
4-18 |
1-12 |
44.2 |
|
24″ |
DN600 |
151 |
658 |
446 |
525 |
70 |
50.65 |
210 |
165 |
4-22 |
1-16 |
54.7 |
|
28″ |
DN700 |
164 |
771.5 |
520 |
618 |
95 |
63.35 |
300 |
254 |
8-18 |
2-18 |
71.4 |
|
32″ |
DN800 |
189 |
811 |
580 |
665 |
95 |
63.35 |
300 |
254 |
8-18 |
2-18 |
71.4 |

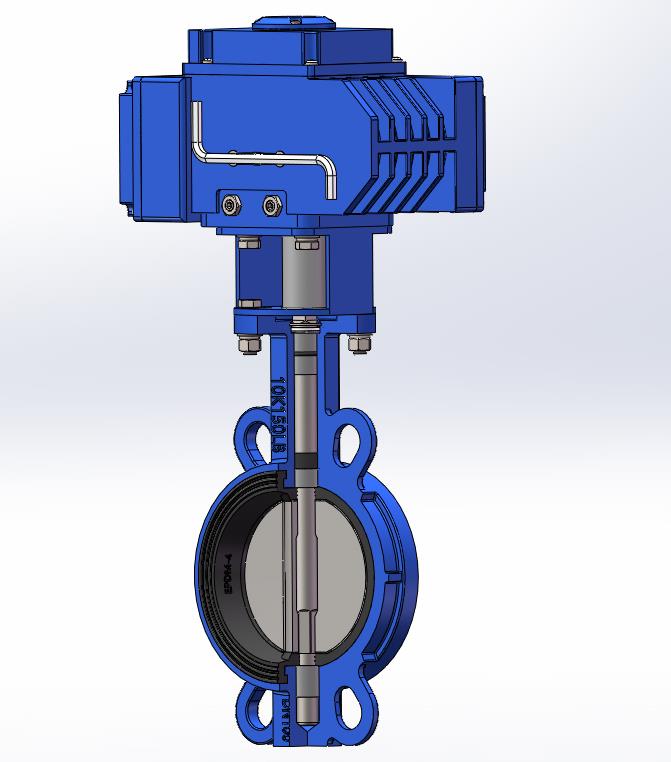

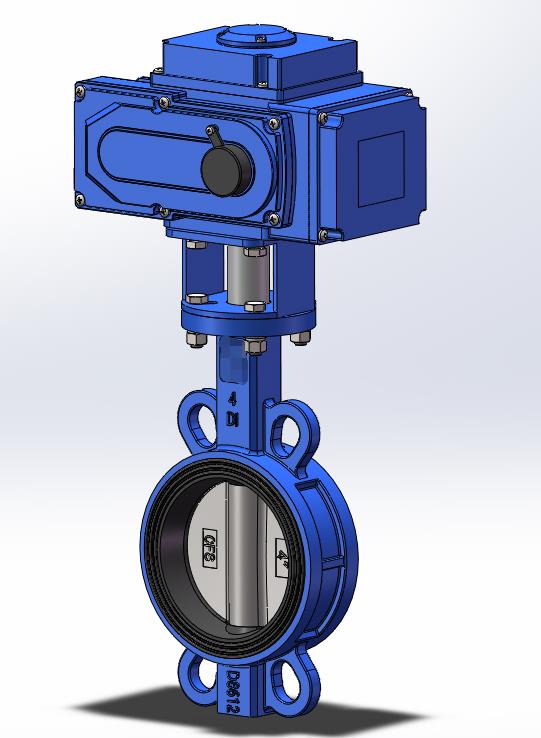

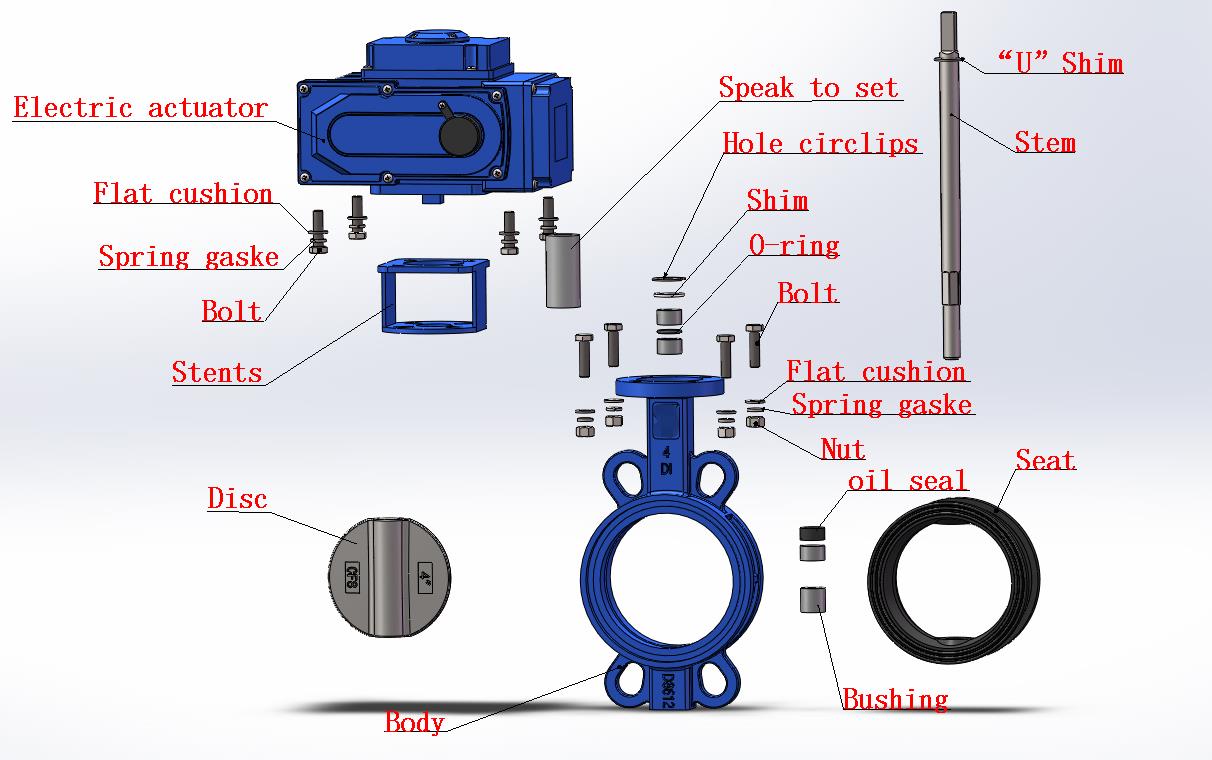

1.High performance seat rubber(50% rubber content).
2.EPDM soft seated which can be replaced when demaged.
3.Valve switch life-time is more than 30000 times.
4.Axial seal(O-ring+oil seal,double seal structure).
5.Adopt epoxy spraying(stronger adhesion and good weather resistance).
6.Ductile Iron Lever&Worm Gear(stronger corrosion resistance).
7.Pneumatic Actuator adopts double piston rack structure.
8.Electric Actuator supplying voltage: 380V,220V or customized.
9.Pressure Testing Report,Certificate of Material and FORM E Certificate Of Origin can be provided.
Water treatment, HVAC, Urban construction, Petroleum, Chemical Indsutry, Textile & Papermaking
Helping you with our 10 years experiences of valve products industry
