| Face to Face Length: |
API609 |
| Test and Inspection: |
API598 |
| Top Flange Standard: |
ISO5211 |
| Flange Size Standard: |
ASME B16.5;ASME B16.47;ASME B16.1;DIN2501 |
| Body Material: |
Ductile Iron |
| Working Temperature: |
-20℃～120℃ |
| Nominal Pressure: |
PN10/PN16/CLASS150 |
| Available Material: | |
| Body Material: |
Ductile iron |
| Disc Material: |
Ductile iron/CF8/CF8M/CF3/CF3M/1.4529/Al.Bronze C954 or C958 |
| Shaft Material: | Steel 45/SS416/SS420/SS304/SS316/SS431 |
| Seat Material: | EPDM/NBR/VITON |
| Epoxy coating | RAL5005 or customized |
| Face to Face Length: |
API609 |
| Test and Inspection: |
API598 |
| Top Flange Standard: |
ISO5211 |
| Flange Size Standard: |
ASME B16.5;ASME B16.47;ASME B16.1;DIN2501 |
| Body Material: |
Ductile Iron |
| Working Temperature: |
-20℃～120℃ |
| Nominal Pressure: |
PN10/PN16/CLASS150 |
|

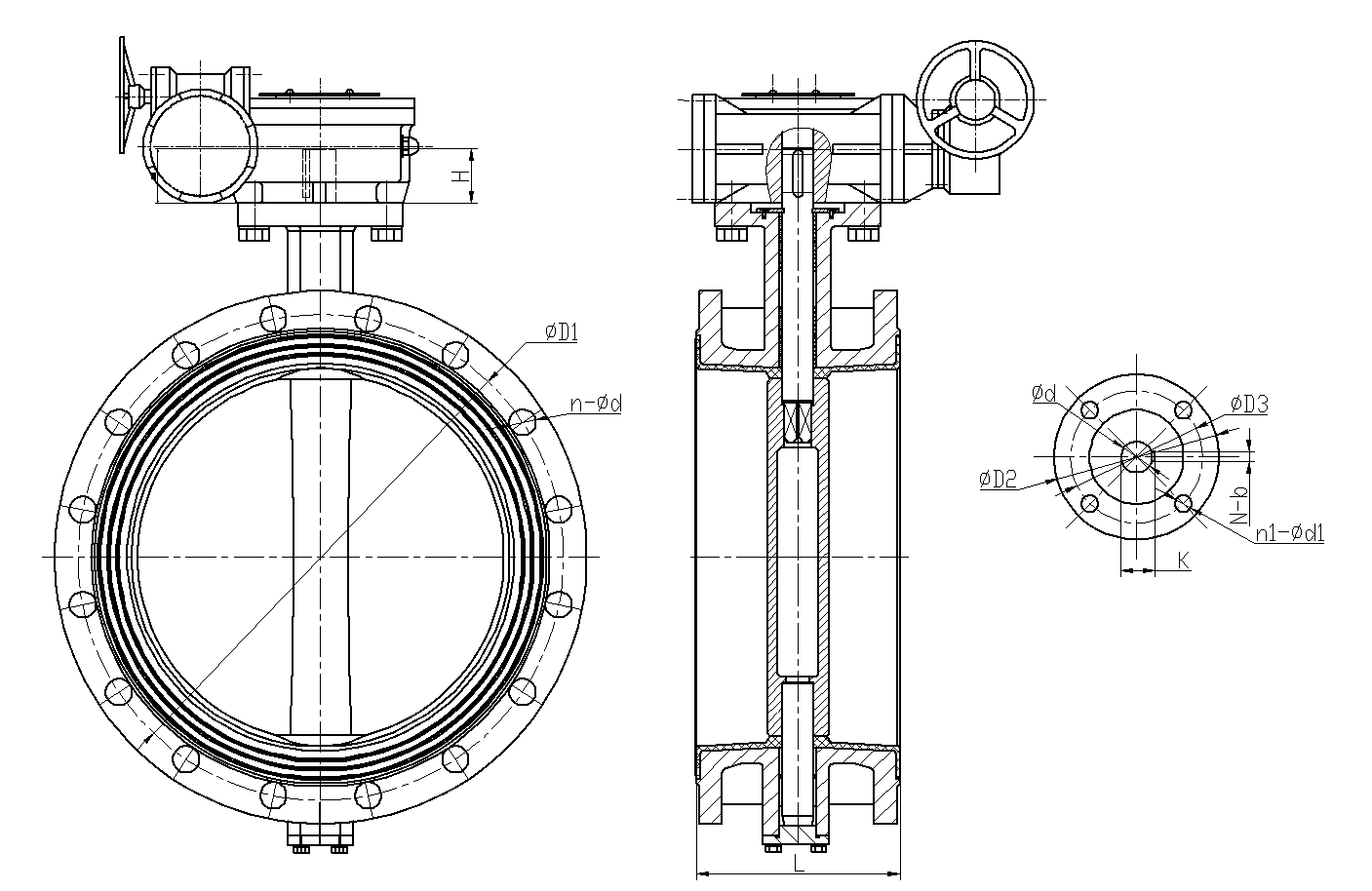

DN |
L |
PN16 |
PN10 |
150LB |
H |
φd |
K |
φD2 |
φD3 |
n1-φd1 |
N-b |
||||
|
|
|
D1 |
n-φd |
D1 |
n-φd |
D1 |
n-φd |
|
|
|
|
|
|
|
|
|
16″ |
DN400 |
216 |
525 |
16-31 |
515 |
16-28 |
539.8 |
16-28.4 |
52 |
33.15 |
36.2 |
175 |
140 |
4-18 |
1-10 |
|
18″ |
DN450 |
222 |
585 |
20-31 |
565 |
20-28 |
577.9 |
16-31.8 |
52 |
38 |
41 |
175 |
140 |
4-18 |
1-10 |
|
20″ |
DN500 |
229 |
650 |
20-34 |
620 |
20-28 |
635 |
20-31.8 |
64 |
41.15 |
44.2 |
175 |
140 |
4-18 |
1-12 |
|
24″ |
DN600 |
267 |
770 |
20-37 |
725 |
20-31 |
749.3 |
20-35.1 |
70 |
50.65 |
54.7 |
210 |
165 |
4-22 |
1-16 |
|
28″ |
DN700 |
292 |
840 |
24-37 |
840 |
24-31 |
863.6 |
28-35.1 |
95 |
63.35 |
71.4 |
300 |
254 |
8-18 |
2-18 |
|
32″ |
DN800 |
318 |
950 |
24-40 |
950 |
24-34 |
977.9 |
28-41.1 |
95 |
63.35 |
71.4 |
300 |
254 |
8-18 |
2-18 |
|
36″ |
DN900 |
330 |
1050 |
28-40 |
1050 |
28-34 |
1085.8 |
32-41.1 |
130 |
75 |
84 |
300 |
254 |
8-18 |
2-20 |
|
40″ |
DN1000 |
410 |
1170 |
28-43 |
1160 |
28-37 |
1200.2 |
36-41.1 |
130 |
85 |
95 |
300 |
254 |
8-18 |
2-22 |
|
48″ |
DN1200 |
470 |
1390 |
32-49 |
1380 |
32-40 |
1422.4 |
44-41.1 |
150 |
105 |
117 |
350 |
298 |
8-22 |
2-28 |
|
56″ |
DN1400 |
530 |
1590 |
36-49 |
1590 |
36-44 |
1651 |
48-47.8 |
200 |
120 |
134 |
415 |
356 |
8-33 |
2-32 |
|
60″ |
DN1500 |
570 |
1710 |
36-57 |
1700 |
36-44 |
1759 |
52-47.8 |
200 |
140 |
156 |
415 |
356 |
8-33 |
2-36 |
|
64″ |
DN1600 |
600 |
1820 |
40-56 |
1820 |
40-50 |
-- |
-- |
200 |
140 |
156 |
415 |
365 |
8-33 |
2-36 |
|
72″ |
DN1800 |
670 |
2020 |
44-56 |
2020 |
44-50 |
2096 |
60-50.8 |
280 |
160 |
178 |
475 |
406 |
8-40 |
2-40 |
|
80″ |
DN2000 |
760 |
2230 |
48-62 |
2230 |
48-50 |
-- |
-- |
280 |
160 |
178 |
475 |
406 |
8-40 |
2-40 |
1.High performance seat rubber(50% rubber content).
2.EPDM soft seated which can be replaced when demaged.
3.Valve switch life-time is more than 30000 times.
4.Axial seal(O-ring+oil seal,double seal structure).
5.Adopt epoxy spraying(stronger adhesion and good weather resistance).
6.Ductile Iron Lever&Worm Gear(stronger corrosion resistance).
7.Pneumatic Actuator adopts double piston rack structure.
8.Electric Actuator supplying voltage: 380V,220V or customized.
9.Pressure Testing Report,Certificate of Material and FORM E Certificate Of Origin can be provided.
Water treatment, HVAC, Urban construction, Petroleum, Chemical Indsutry, Textile & Papermaking
