| Face to Face: |
API609 |
| Test and Inspection: |
API598 |
| Top Flange Standard: |
ISO5211 |
| Epoxy Spraying: |
RAL 5005 or customized |
| Documents Service: |
FORM E Certificate of Origin/Certificate of Material/Pressure Testing Report |
| Working Temperature: |
-20℃～120℃ |
|
Nominal Pressure: |
PN10/PN16/CLASS125/CLASS150/10K/5K |
|
Available Material: |
|
| Body Material: |
Ductile Iron |
| Disc Material: |
Ductile iron/CF8/CF8M/CF3/CF3M/1.4529/AL.Bronze C954 or C958 |
| Shaft Material: |
SS416/SS420/SS304/SS316/SS431 |
| Seat Material: |
EPDM/NBR/Viton/PTFE |
|
Quality Standard: |
|
| Design & Manufacture Standard: |
API 609 |
| Face to Face Dimension Standard: |
API 609 |
| Nominal Pressure: |
PN10/PN16/CLASS150/10K |
| Test & Inspection Standard: |
API 598 |
|

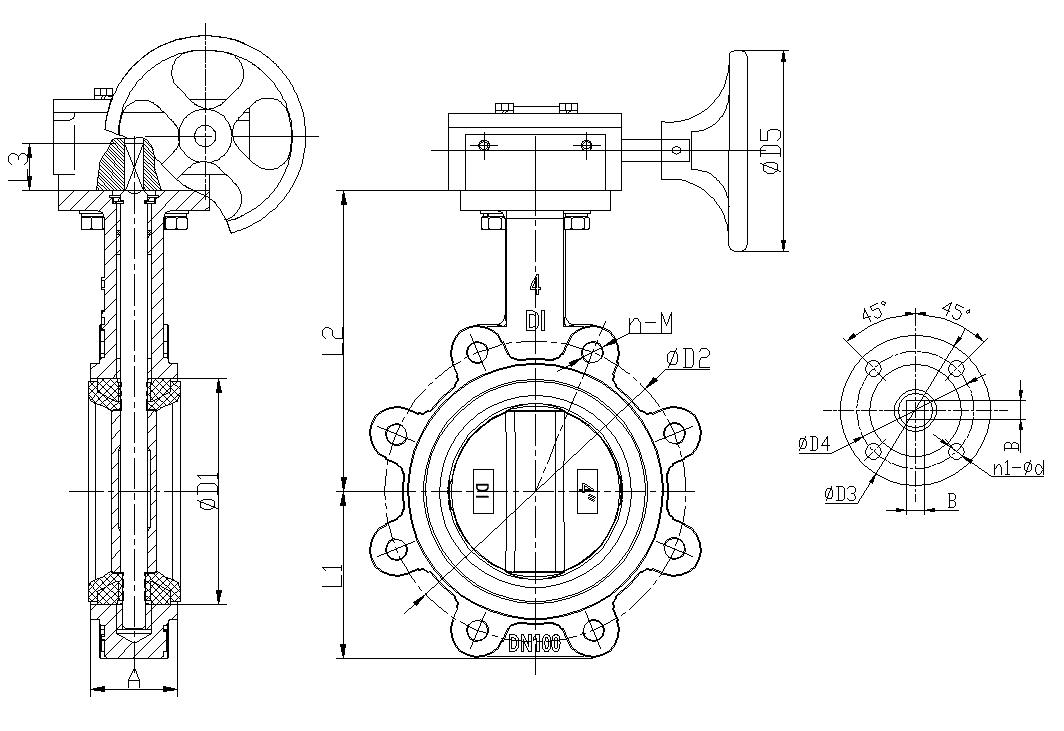

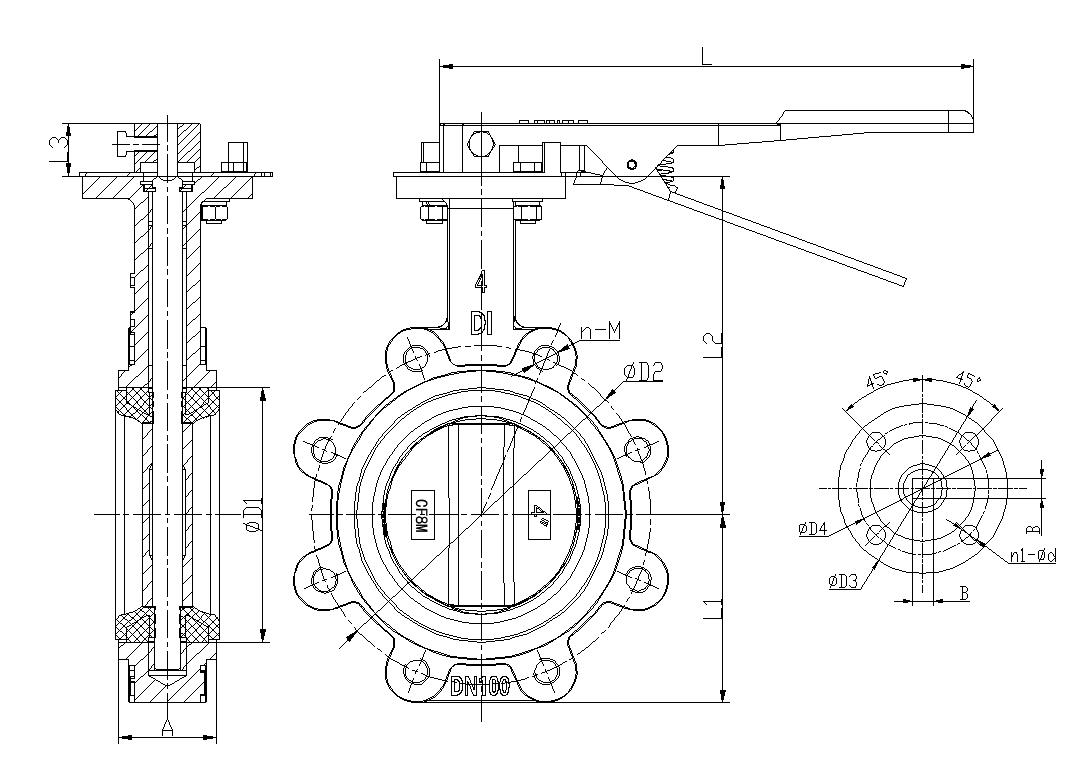

DN |
A |
D1 |
L1 |
L2 |
L3 |
B |
PN16 |
PN10 |
CLASS150 |
φD3 |
φD4 |
n1-φd |
L |
||||
|
D1 |
n-M |
D1 |
n-M |
D1 |
n-M |
||||||||||||
|
2″ |
DN50 |
42 |
73.3 |
54 |
161 |
25 |
9 |
125 |
4-M16 |
125 |
4-M16 |
120.7 |
4-5/8″ |
65 |
50 |
4-8 |
249 |
|
2.5″ |
DN65 |
44 |
86 |
62 |
175 |
25 |
9 |
145 |
4-M16 |
145 |
4-M16 |
139.7 |
4-5/8″ |
65 |
50 |
4-8 |
249 |
|
3″ |
DN80 |
45 |
100.9 |
82 |
181 |
25 |
9 |
160 |
8-M16 |
160 |
8-M16 |
152.4 |
4-5/8″ |
65 |
50 |
4-8 |
249 |
|
4″ |
DN100 |
51.5 |
132 |
99 |
200 |
28 |
11 |
180 |
8-M16 |
180 |
8-M16 |
190.5 |
8-5/8″ |
90 |
70 |
4-10 |
283 |
|
5″ |
DN125 |
54 |
156 |
114 |
213 |
28 |
14 |
210 |
8-M16 |
210 |
8-M16 |
215.9 |
8-3/4″ |
90 |
70 |
4-10 |
283 |
|
6″ |
DN150 |
55 |
185 |
129 |
236 |
28 |
14 |
240 |
8-M20 |
240 |
8-M20 |
241.3 |
8-3/4″ |
90 |
70 |
4-10 |
283 |
|
8″ |
DN200 |
59 |
235 |
150 |
260 |
33 |
17 |
295 |
12-M20 |
295 |
8-M20 |
298.5 |
8-3/4″ |
125 |
102 |
4-12 |
390 |
|
10″ |
DN250 |
66 |
289 |
186 |
292 |
33 |
22 |
355 |
12-M24 |
350 |
12-M20 |
362 |
12-7/8″ |
125 |
102 |
4-12 |
390 |
|
12″ |
DN300 |
76 |
341 |
218 |
337 |
33 |
22 |
410 |
12-M24 |
400 |
12-M20 |
431.8 |
12-7/8″ |
125 |
102 |
4-12 |
540 |
|
DN |
A |
D1 |
L1 |
L2 |
L3 |
B |
PN16 |
PN10 |
CLASS150 |
φD3 |
φD4 |
n1-φd |
D5 |
||||
|
|
|
|
|
|
|
|
D2 |
n-M |
D2 |
n-M |
D2 |
n-M |
|
|
|
|
|
|
2″ |
DN50 |
42 |
73.3 |
54 |
161 |
25 |
9 |
125 |
4-M16 |
125 |
4-M16 |
120.7 |
4-5/8″ |
65 |
50 |
4-8 |
135 |
|
2.5″ |
DN65 |
44 |
86 |
62 |
175 |
25 |
9 |
145 |
4-M16 |
145 |
4-M16 |
139.7 |
4-5/8″ |
65 |
50 |
4-8 |
135 |
|
3″ |
DN80 |
45 |
100.9 |
82 |
181 |
25 |
9 |
160 |
8-M16 |
160 |
8-M16 |
152.4 |
4-5/8″ |
65 |
50 |
4-8 |
135 |
|
4″ |
DN100 |
51.5 |
132 |
99 |
200 |
28 |
11 |
180 |
8-M16 |
180 |
8-M16 |
190.5 |
8-5/8″ |
90 |
70 |
4-10 |
135 |
|
5″ |
DN125 |
54 |
156 |
114 |
213 |
28 |
14 |
210 |
8-M16 |
210 |
8-M16 |
215.9 |
8-3/4″ |
90 |
70 |
4-10 |
135 |
|
6″ |
DN150 |
55 |
185 |
129 |
236 |
28 |
14 |
240 |
8-M20 |
240 |
8-M20 |
241.3 |
8-3/4″ |
90 |
70 |
4-10 |
135 |
|
8″ |
DN200 |
59 |
235 |
150 |
260 |
33 |
17 |
295 |
12-M20 |
295 |
8-M20 |
298.5 |
8-3/4″ |
125 |
102 |
4-12 |
270 |
|
10″ |
DN250 |
66 |
289 |
186 |
292 |
33 |
22 |
355 |
12-M24 |
350 |
12-M20 |
362 |
12-7/8″ |
125 |
102 |
4-12 |
270 |
|
12″ |
DN300 |
76 |
341 |
218 |
337 |
33 |
22 |
410 |
12-M24 |
400 |
12-M20 |
431.8 |
12-7/8″ |
125 |
102 |
4-12 |
270 |
|
14″ |
DN350 |
76 |
372 |
242 |
368 |
45 |
22 |
470 |
16-M24 |
460 |
16-M20 |
476.3 |
12-1″ |
125 |
102 |
4-12 |
270 |
|

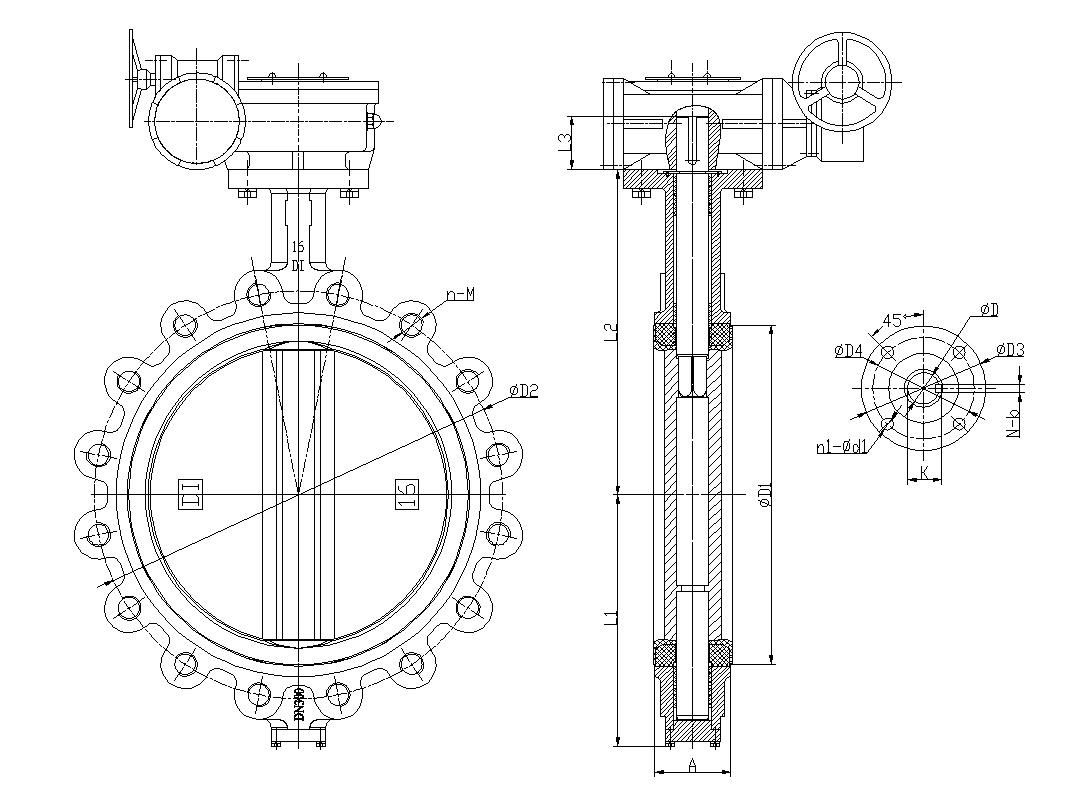

DN |
A |
D1 |
L1 |
L2 |
L3 |
φD |
N-b |
K |
PN16 |
PN10 |
CLASS 150 |
φD3 |
φD4 |
n1-φd1 |
||||
|
|
|
|
|
|
|
|
|
|
D2 |
n-φd |
D2 |
n-φd |
D2 |
n-φd |
|
|
|
|
|
16″ |
DN400 |
86.5 |
436 |
320 |
403 |
52 |
33.15 |
1-10 |
36.2 |
525 |
16-M27 |
515 |
16-M24 |
539.8 |
16-1″ |
175 |
140 |
4-18 |
|
18″ |
DN450 |
104.6 |
487 |
351 |
415 |
52 |
38 |
1-10 |
41 |
585 |
20-M27 |
565 |
20-M24 |
577.9 |
16-1 1/8″ |
175 |
140 |
4-18 |
|
20″ |
DN500 |
130 |
532 |
386 |
466 |
64 |
41.15 |
1-12 |
44.2 |
650 |
20-M30 |
620 |
20-M24 |
635 |
20-1 1/8″ |
175 |
140 |
4-18 |
|
24″ |
DN600 |
152 |
651 |
446 |
525 |
70 |
50.65 |
1-16 |
54.7 |
770 |
20-M33 |
725 |
20-M27 |
749.3 |
20-1 1/4″ |
210 |
165 |
4-22 |
1.High performance seat rubber(50% rubber content).
2.EPDM soft seated which can be replaced when demaged.
3.Valve switch life-time is more than 30000 times.

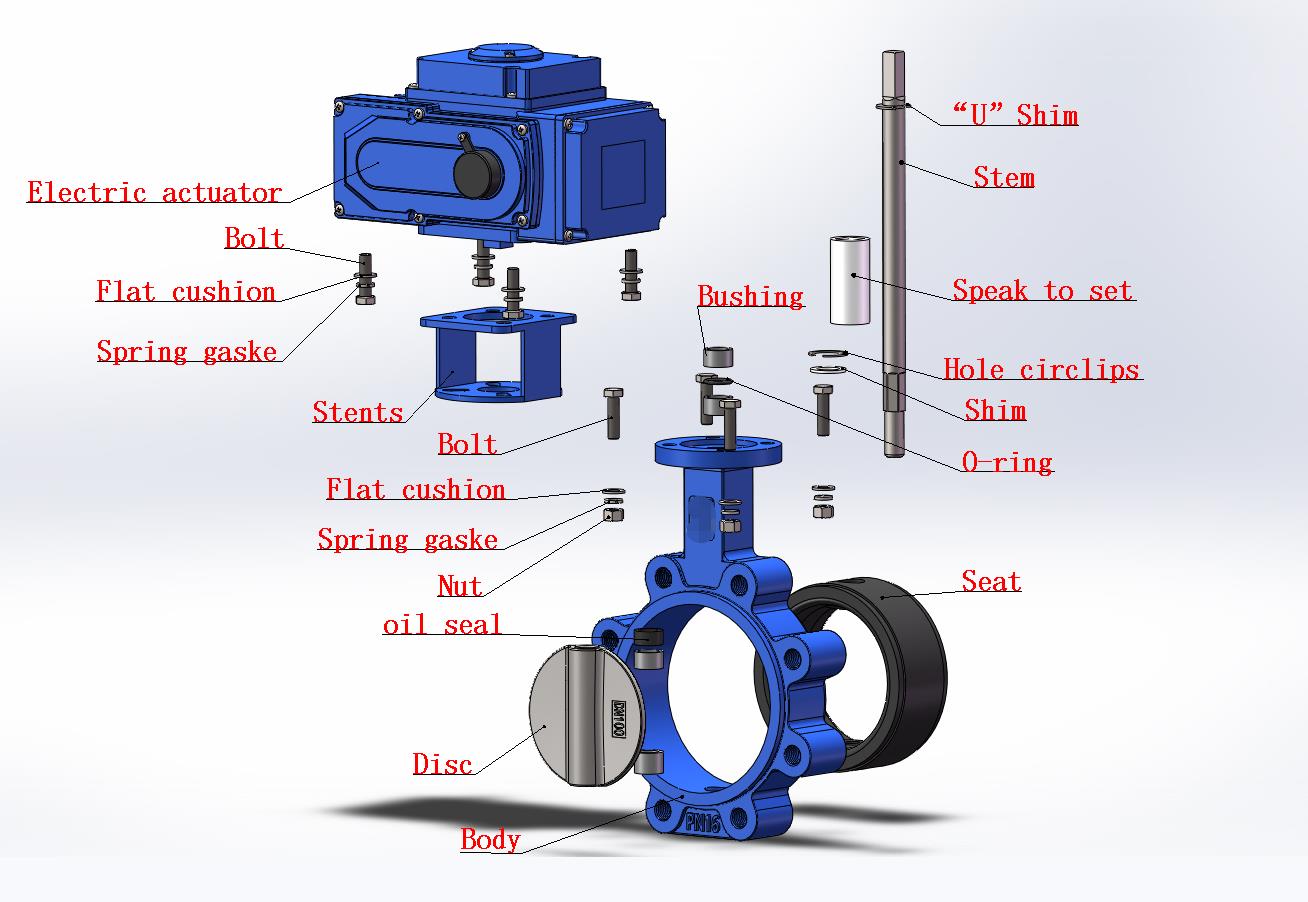

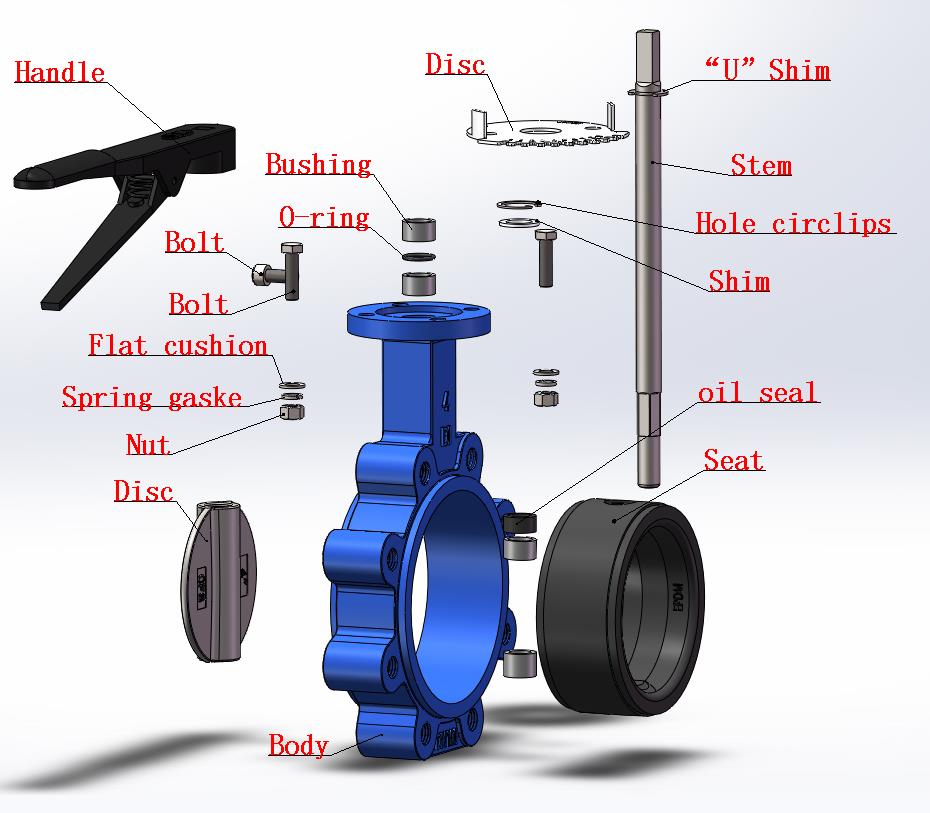

4.Axial seal(O-ring+oil seal,double seal structure).
5.Adopt epoxy spraying(stronger adhesion and good weather resistance).

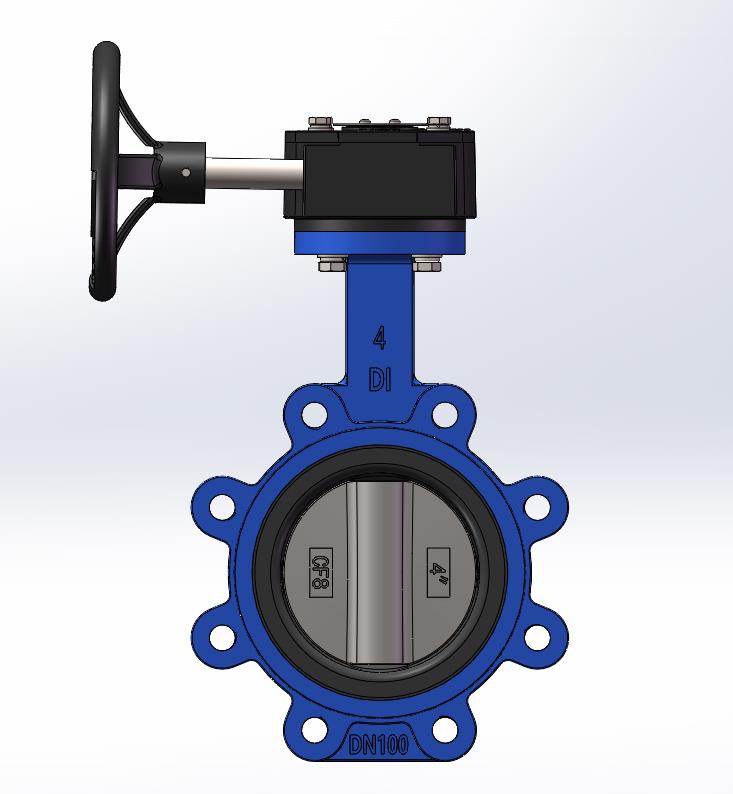

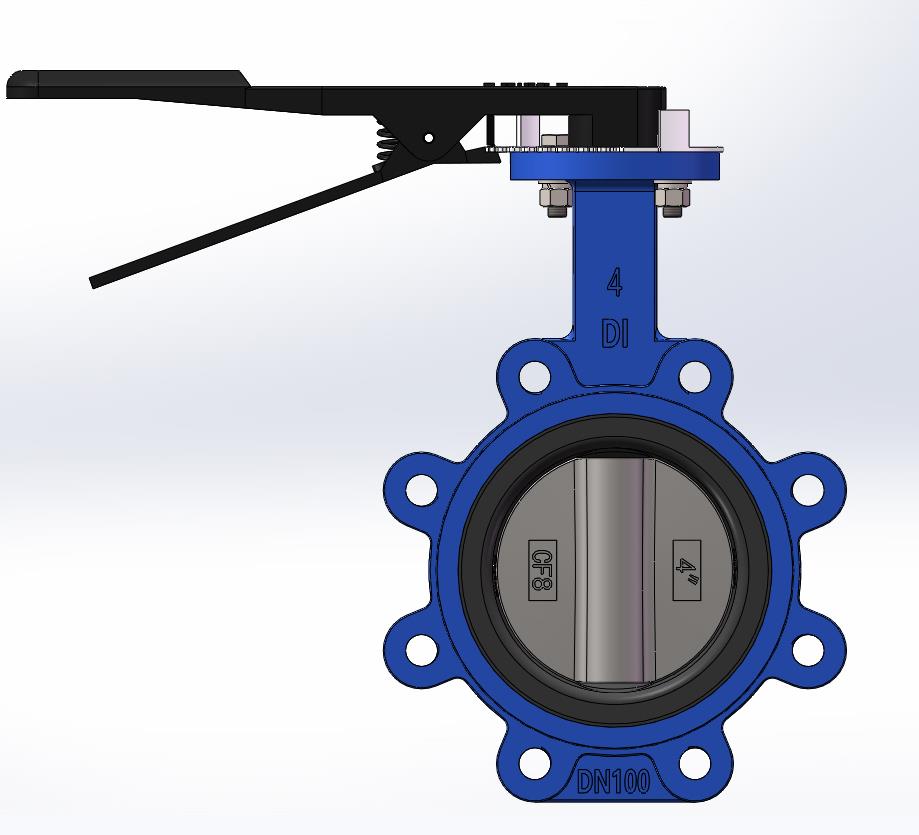

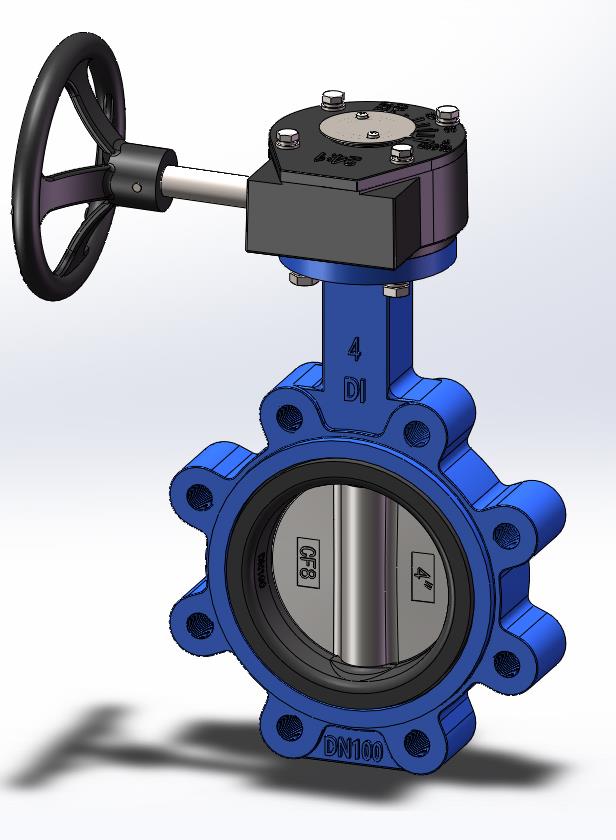

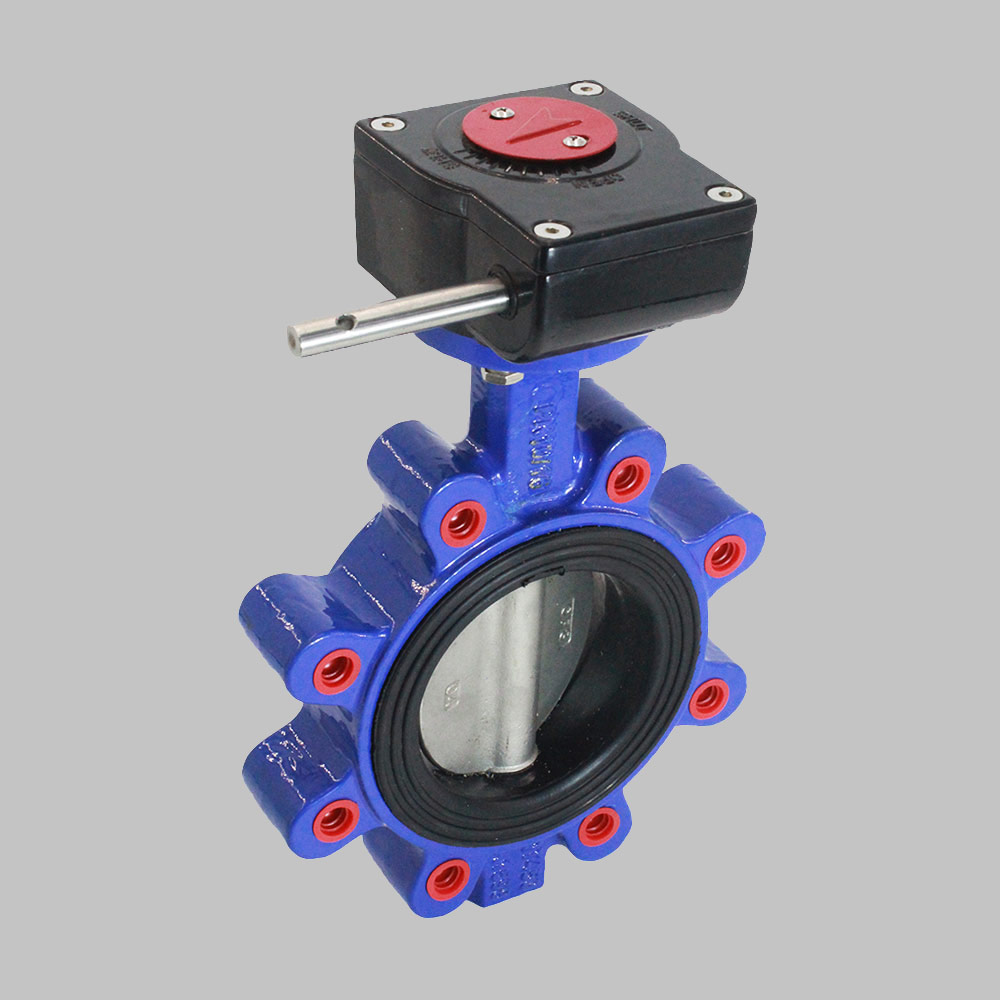

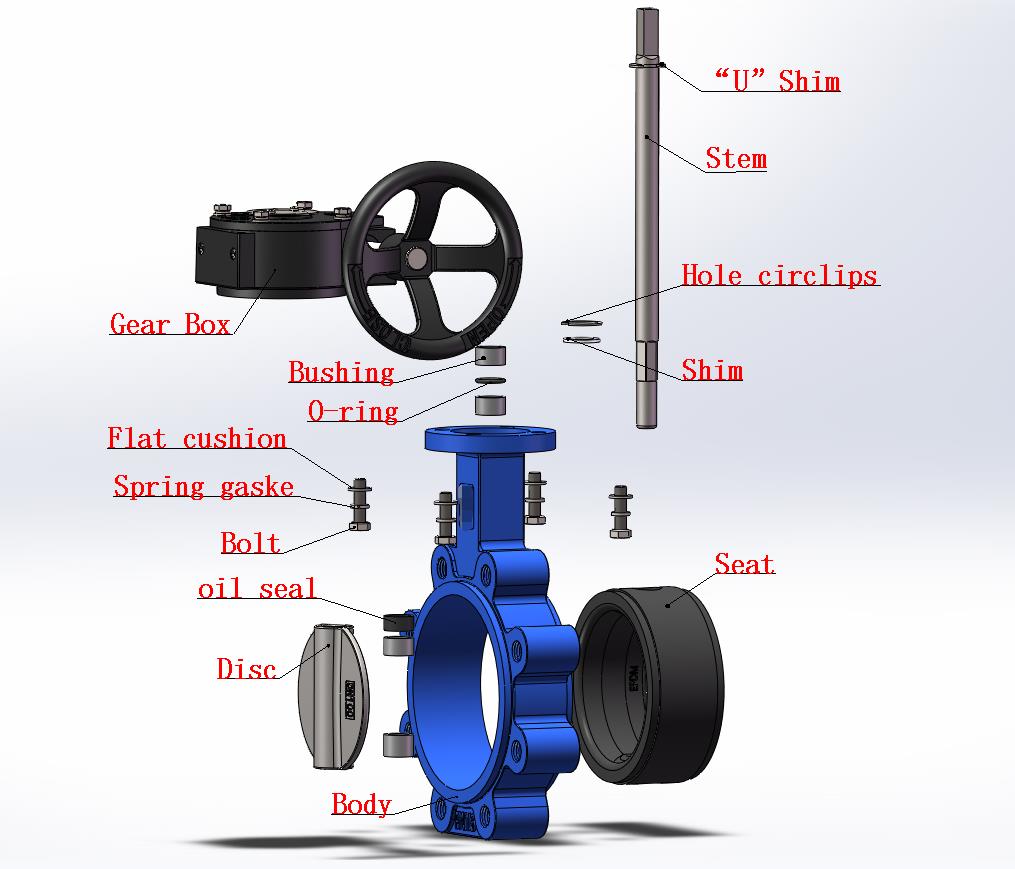

6.Ductile Iron Lever&Worm Gear(stronger corrosion resistance).

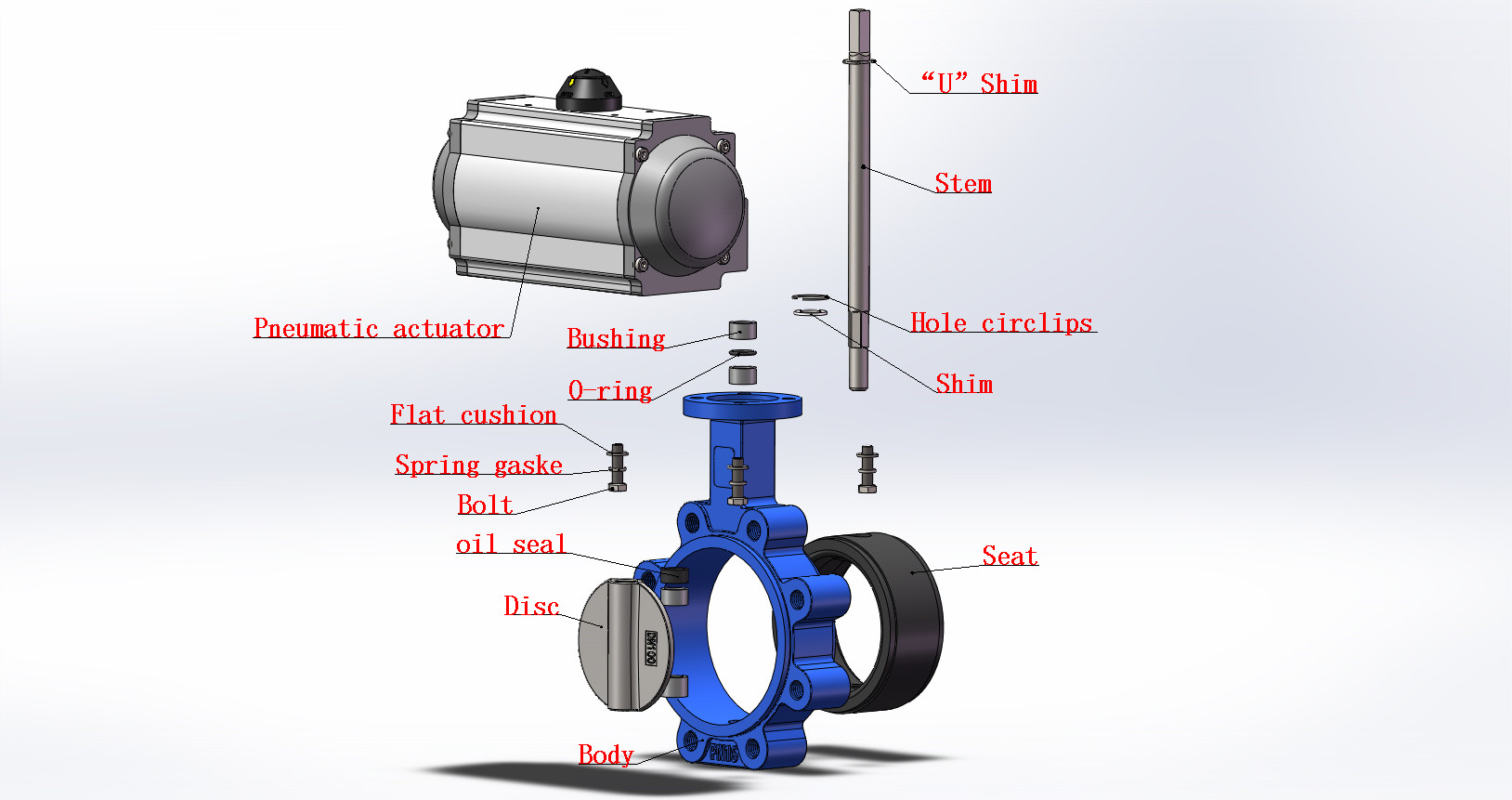

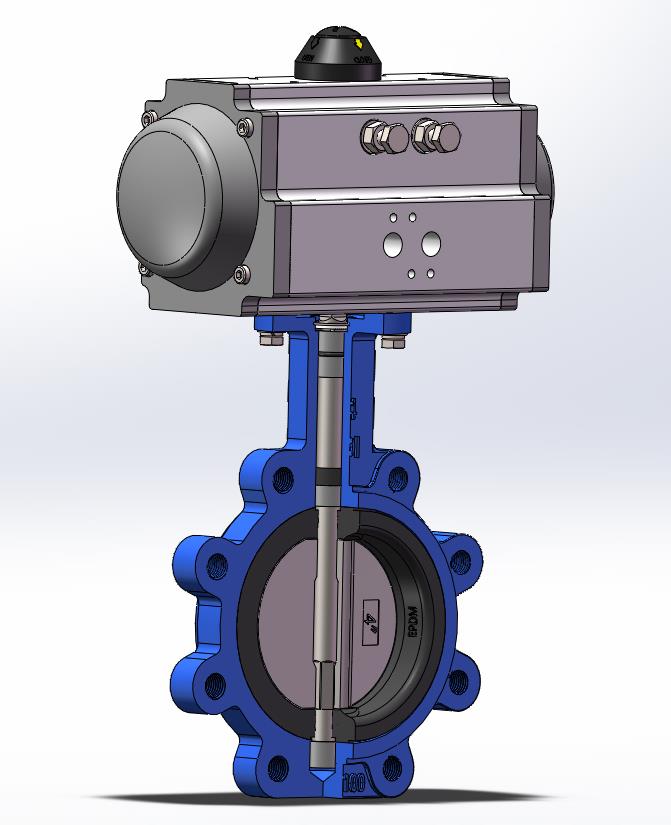

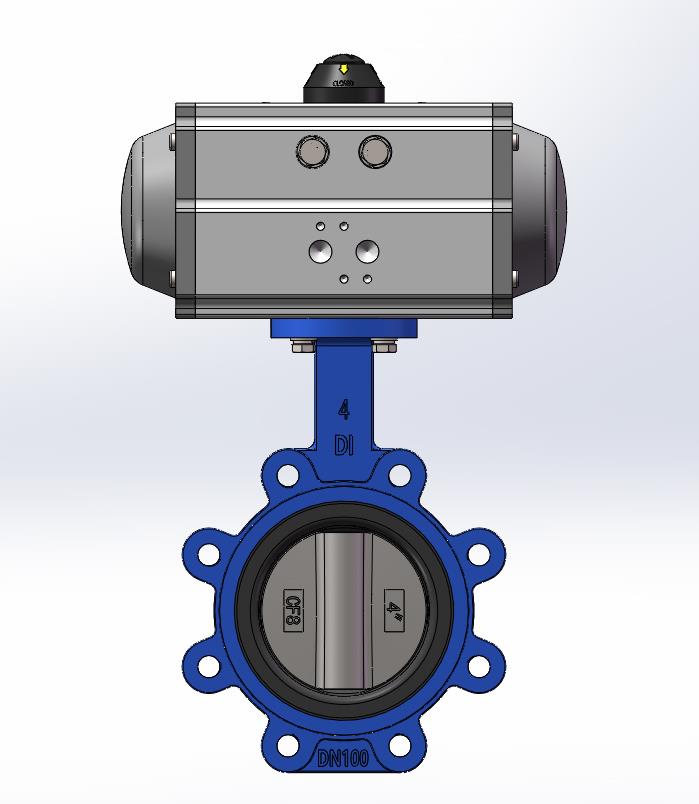

7.Pneumatic Actuator adopts double piston rack structure.

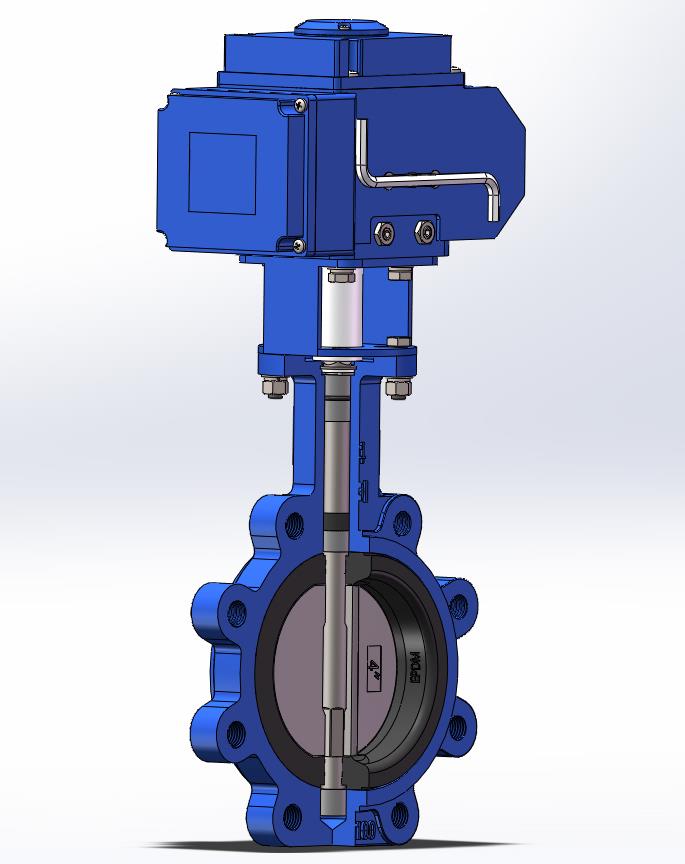

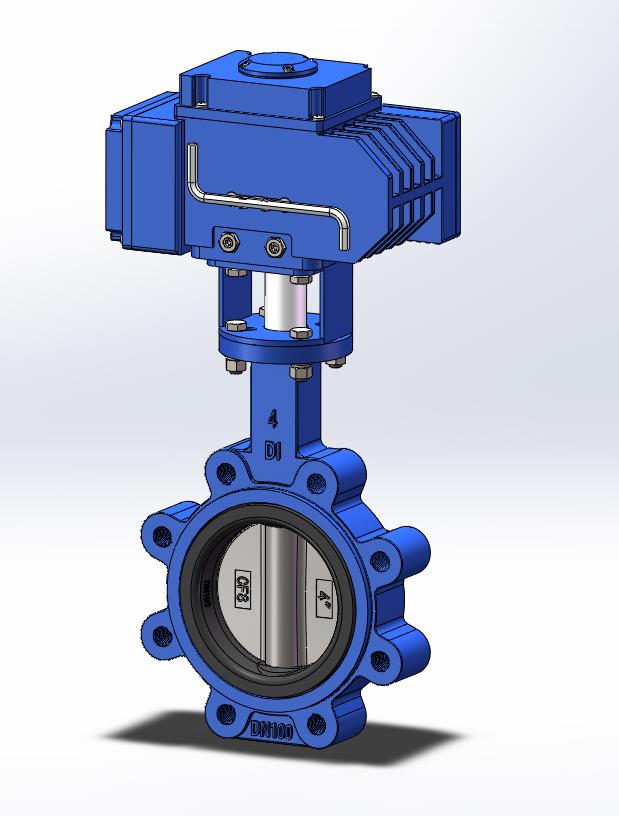

8.Electric Actuator supplying voltage: 380V,220V or customized.
9.Pressure Testing Report,Certificate of Material and FORM E Certificate Of Origin can be provided.
Water treatment, HVAC, Urban construction, Petroleum, Chemical Indsutry, Textile & Papermaking
