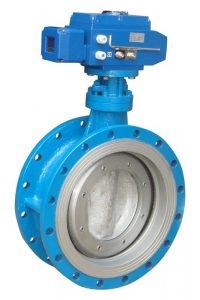

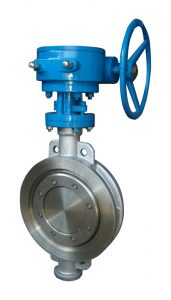

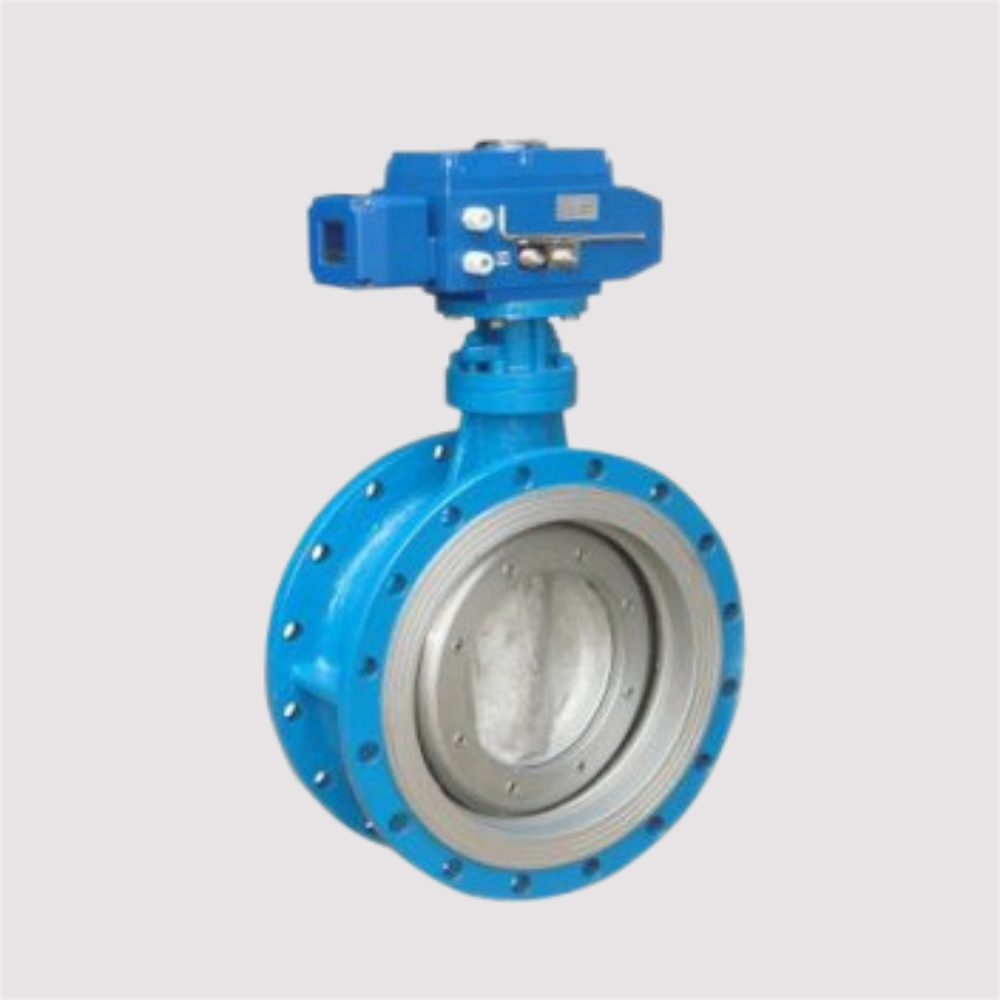

Triple Offset Butterfly Valve

Face to Face:	API609
Test and Inspection:	API598
Top Flange Standard:	ISO5211
Epoxy Spraying:	RAL customized series
Documents Service:	FORM E Certificate of Origin/Certificate of Material/Pressure Testing Report
Working Temperature:	450℃ Maximum
Nominal Pressure:	PN6/PN10/PN16/PN25

valve@mfvalve.com+86-183-1755-3906

Send Email Inquiry Now

Three Eccentric Butterfly Valve
Body Material:	ASTM A216 WCB/CF8/CF8M
Disc Material:	ASTM A216 WCB/CF8/CF8M
Shaft Material:	2Cr13
Seat Material:	Stainless steel+graphite/PTFE

Product Introduction

Triple eccentric multi-layer metal hard seal butterfly valve series products are long-life, energy-saving butterfly valves. Its structure adopts three-dimensional eccentric design, and the valve seat adopts a multi-level structure compatible with hard and soft seal, with advanced technology and exquisite processing. This product is composed of valve body, disc, multi-layer valve seat, valve stem, transmission mechanism and other main components.

Product Feature

Because the butterfly valve of this product is designed by the principle of three-dimensional eccentric, the spatial trajectory of the sealing surface can be idealized. There is no friction and interference between the sealing surfaces. And due to the optimized configuration of the sealing material, the sealing performance, corrosion resistance, high temperature resistance and wear resistance of the butterfly valve can be guaranteed. Its main features are as follows:

1.Small opening torque, flexible and convenient, labor-saving and energy-saving.

2. The three-dimensional eccentric structure makes the disc tighter, and its sealing performance is reliable, achieving no leakage.

3. High pressure resistance and corrosion resistance. Wear resistance, long service life, etc.

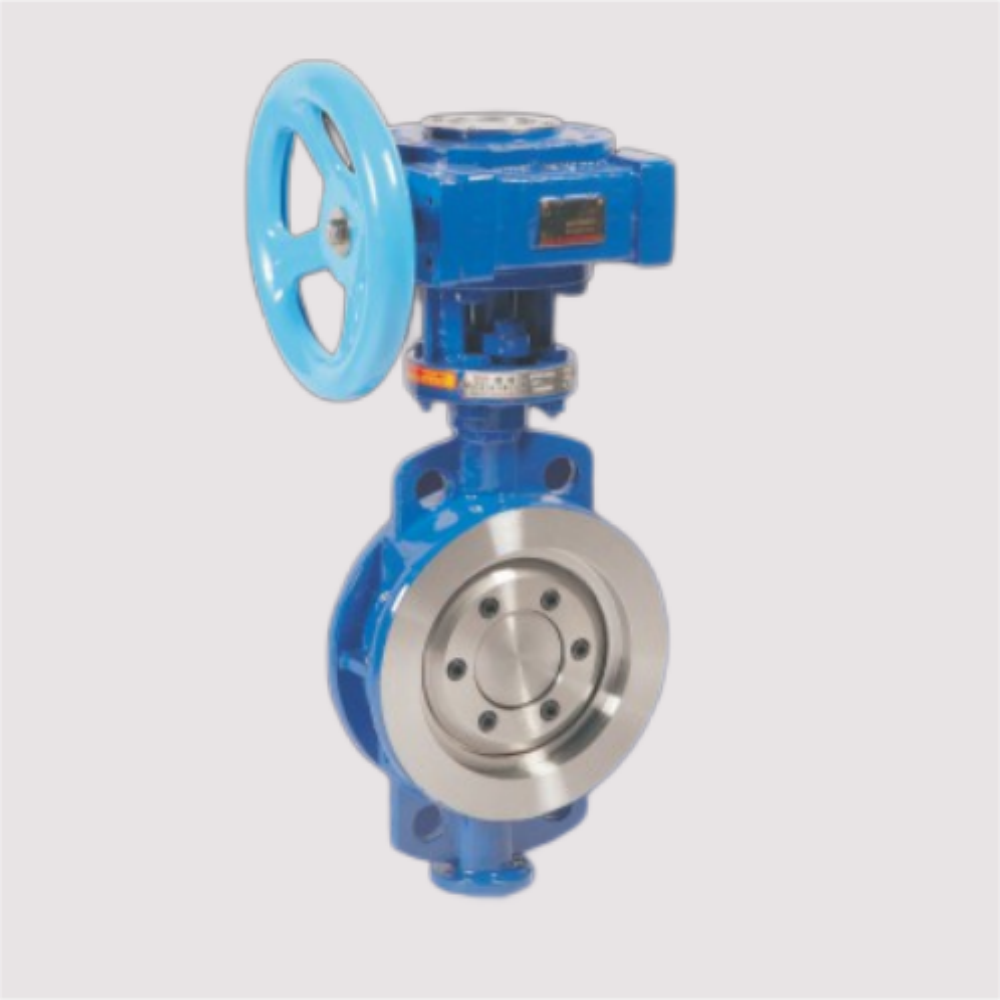

Main Technical Connection Dimensions: (WAFER type)

DN		Structure length		Surface dimensions(reference)										Flange dimensions(standard)				D373H WT(kg)
DN		Structure length		H	D373H			D673H			D973H			PN0.6MPa		PN1.0MPa
mm	Inches	short	long	H	H1	A1	B1	H2	A2	B2	H3	A3	B3	D1	Z-d	D1	Z-d
40	1 1/2	43	43	107	330	180	200	625	245	72	530	250	255	100	4-14	110	4-18	10
50	2	43	43	112	350	180	200	625	245	72	530	250	255	110	4-14	125	4-18	12
65	2 1/2	46	46	115	370	180	200	625	245	72	530	250	255	130	4-14	145	4-18	13
80	3	49	64	125	380	180	200	645	245	72	565	250	255	150	4-18	160	8-18	15
100	4	56	64	138	420	180	200	675	355	92	600	250	255	170	4-18	180	8-18	17
125	5	64	70	164	460	180	200	715	355	92	640	250	255	200	8-18	210	8-18	27
150	6	70	76	175	555	270	280	800	355	92	704	300	315	225	8-18	240	8-22	29
200	8	71	89	215	780	400	425	850	250	170	775	300	315	280	8-18	295	8-22	45
250	10	76	114	243	840	400	425	925	250	170	945	300	315	335	12-18	350	12-22	69
300	12	83	114	285	995	450	560	1035	450	220	1070	300	315	395	12-22	400	12-22	86
350	14	92	127	320	1050	450	560	1070	450	220	1140	300	315	445	12-22	460	16-22	122
400	16	102	140	350	1220	535	580	1190	450	220	1210	300	315	495	16-22	515	16-26	141
450	18	114	152	350	1280	535	580	1250	650	280	1335	575	714	550	16-22	565	20-26	191
500	20	127	152	380	1365	535	580	1290	650	280	1415	575	714	600	20-22	620	20-26	260
600	24	154	178	435	1460	570	660	1455	850	380	1605	656	810	705	20-26	725	20-30	380
700	28	165	229	480	1520	750	550	1585	850	380	1844	656	810	810	24-26	840	24-30	450
800	32	190	241	530	1710	750	550	1700	1250	380	2040	656	810	920	24-30	950	24-33	650
900	36	203	241	595	1810	750	550	1965	1250	380	2255	785	863	1020	24-30	1050	28-33	830
1000	40	216	300	650	1900	900	750	2015	1250	380	2380	785	863	1120	28-30	1160	28-36	1050
1200	48	254	360	775	1180	1000	925	2250	1250	380	2640	785	863	1340	32-33	1380	32-39	1400
1400	56	279	390	870	1450	1000	925				2886			1560	36-36	1590	36-42	1900
1600	64	318	440	1000	1730	1000	925				3156			1760	40-36	1820	40-48	2900
1800	72	356	490	1110	3020	1100	980				3421			1970	44-39	2020	44-48	4000
2000	80	406	540	1250	3270	1100	980				3685			2180	48-42	2230	48-48	5300

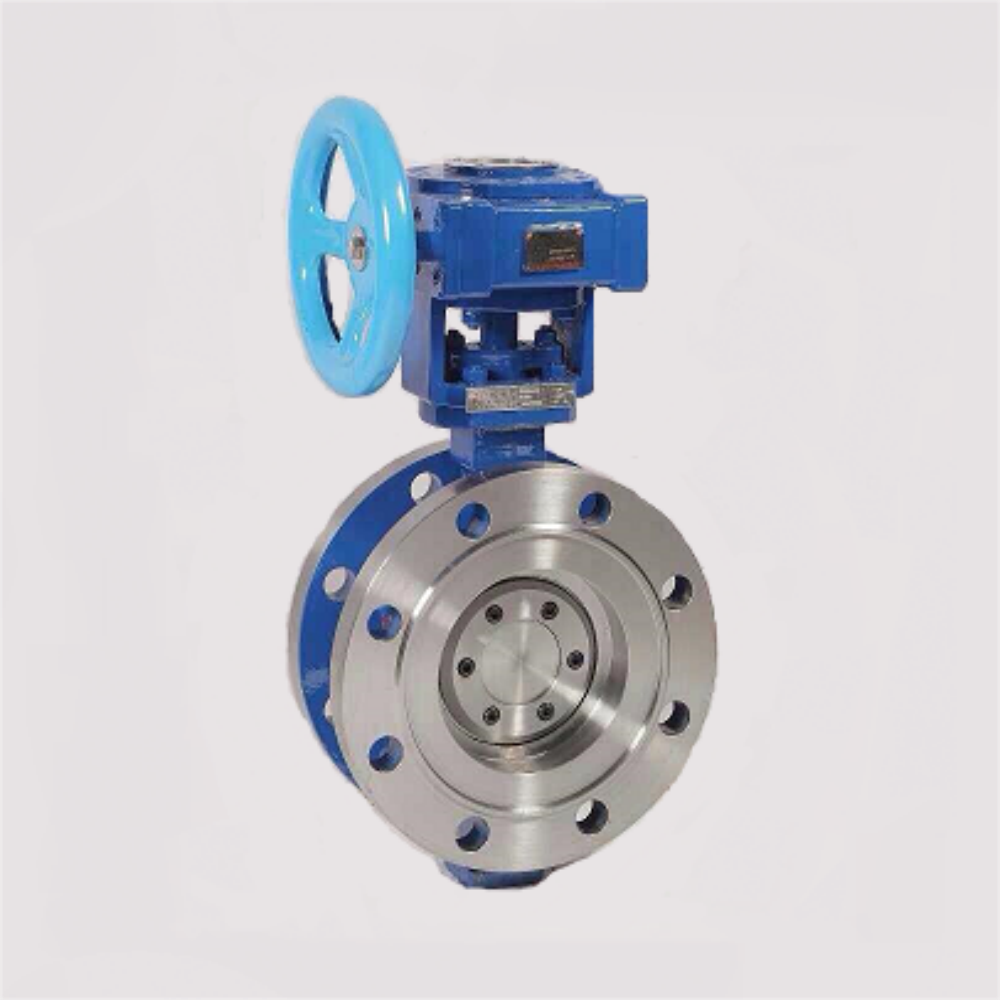

Main Technical Connection Dimensions: (FLANGE type)

DN	Structure length		Surface Connection Dimension: (reference)										Flange dimensions(standard)
DN	Structure length		H	D343H			D643H			D943H			PN0.25MPa			PN0.6MPa			PN1.0MPa
mm	short	long	H	H1	A1	B1	H2	A2	B2	H3	A3	B3	D	D1	Z-d	D	D1	Z-d	D	D1	Z-d
40	106	140	107	330	180	200	605	245	72	530	250	255	130	100	4-14	130	100	4-14	150	110	4-18
50	108	150	112	350	180	200	625	245	72	530	250	255	140	110	4-14	140	110	4-14	165	125	4-18
65	112	170	115	370	180	200	645	245	72	530	250	255	160	130	4-14	160	130	4-14	185	145	4-18
80	114	180	120	380	180	200	675	355	92	565	250	255	190	150	4-18	190	150	4-18	200	160	8-18
100	127	190	138	420	180	200	715	355	92	600	250	255	210	170	4-18	210	170	4-18	220	180	8-18
125	140	200	164	460	180	200	800	355	92	640	250	255	240	200	8-18	240	200	8-18	250	210	8-18
150	140	210	175	555	270	280	850	250	170	705	300	315	265	225	8-18	265	225	8-18	285	240	8-22
200	152	230	200	760	400	425	925	250	170	775	300	315	320	280	8-18	320	280	8-18	340	295	8-22
250	165	250	243	830	400	425	1035	450	220	945	300	315	375	335	12-18	375	335	12-18	395	350	12-22
300	178	270	250	895	450	560	1070	450	220	1070	300	315	440	395	12-22	440	395	12-22	445	400	12-22
350	190	290	280	950	450	560	1190	450	280	1140	300	315	490	445	12-22	490	445	12-22	505	460	16-22
400	216	310	305	1190	535	580	1250	650	280	1210	300	315	540	495	16-22	540	495	16-22	565	515	16-26
450	222	330	350	1255	535	580	1295	650	280	1335	575	714	595	550	16-22	595	550	16-22	615	565	20-26
500	229	350	380	1305	535	580	1455	850	380	1415	575	714	645	600	20-22	645	600	20-22	670	620	20-26
600	267	390	445	1340	570	660	1585	850	380	1605	656	810	755	705	20-26	755	705	20-26	780	725	20-30
700	292	430	480	1520	750	550	1700	1250	380	1844	656	810	860	810	24-26	860	810	24-26	895	840	24-30
800	318	470	530	1710	750	550	1865	1250	380	2040	656	810	975	920	24-30	975	920	24-30	1015	950	24-33
900	330	510	580	1810	750	550	2015	1500	580	2255	785	863	1075	1020	24-30	1075	1020	24-30	1115	1050	28-33
1000	410	550	650	1960	900	750	2226	1500	580	2380	785	863	1175	1120	28-30	1175	1120	28-30	1230	1160	28-36
1200	470	630	760	2250	1000	925				2640	785	863	1375	1320	32-30	1405	1340	32-33	1455	1380	32-39
1400	530	710	850	2435	1000	925				2886			1575	1520	36-30	1630	1560	36-36	1675	1590	36-42
1600	600	790	1030	2780	1000	925				3156			1790	1730	40-30	1830	1760	40-36	1915	1820	40-48
1800	670	870	1230	3020	1100	980				3421			1990	1930	44-30	2045	1970	44-39	2112	2020	44-48
2000	760	950	1350	3270	1100	980				3685			2190	2130	48-30	2265	2180	48-42	2325	2230	48-48

TYPICAL APPLICATIONS

Triple eccentric multi-layer metal hard-sealed butterfly valve is widely used in metallurgy, electric power, petrochemical, air, gas, and water supply and drainage medium pipelines with medium temperature ≤ 650 ° C. It is used to adjust flow and cut off fluid. The sealing performance is reliable. The direction of extension and development of general-purpose butterfly valves to medium-pressure and medium-high temperature fields.
