Product Introduction:
High performance butterfly valve commonly used in gas and vacuum industries with high switching frequencies, the service life can reach millions of times. Even if the valve seat is damaged, it can be replaced on site by simply removing the insert, without disassembling the valve stem, valve plate and other parts.

High performance butterfly valves are widely used in power, petrochemical, coal chemical, metallurgy, hydraulic, papermaking, printing and dyeing, light industry and other fields. Also be used for cryogenic, vapor, chlorine gas, oxygen, high vacuum, corrosion and other special conditions.

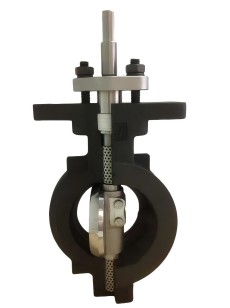

Integral structure of the valve

Product Features

◆Fire- proof structure
Fire-proof valve is tested to API 607 4th Edition and BS 6755 Part Ⅱ
◆Fixed axis
Fixed collar is installed in the top of axis, 2"-24"(DN50- 600). when axis breaks accident, avoid the upper part to move out of gland.
◆Convenient to maintain and upkeep valve seats
Replace axis only by taking inserts down, without disassembling disc and axis.
◆Excellent for both On-Off and Control Application
The design of the sealing ring of the high-performance butterfly valve (PTFE soft seal adopts "lip-tooth" self-sealing structure, and hard seal adopts "U" shaped elastic seal) increases the service life of the valve, and the valve can be opened and closed repeatedly up to millions of times.
◆Bidirectional sealing, zero leakage

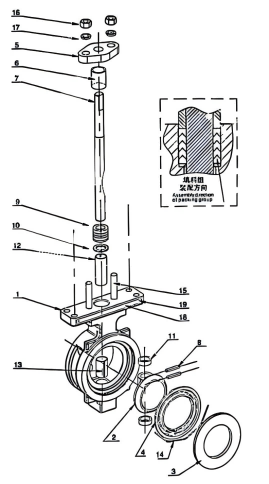

Wafer High Performance Butterfly Valve





NO	名称 Name	材质 Material
1	阀体 Body	WCB,CF8,CF8M,CF3M
2	阀板 Plate	CF8,CF8M,CF3M
3	嵌件Insert	20#,304,316,316L
4	密封圈 Seal ring	PTFE,RPTFE,PPL
5	填料压盖 Packing gland	CF8
6	压圈 Pressing ring	316
7	阀杆Stem	17-4PH
8	锲销 Pin	17-4PH
9	填料组 Packing group	PTFE,RPTFE,PPL
10	填料垫 Packing seat	316
11	挡圈 Check ring	316
12	上轴套 Upper shaft sleeve	316+RPTFE
13	下轴套Lower shaft sleeve	316+RPTFE
14	嵌弹簧 Embedded spring	因可镍INCONEL X-750
15	双头螺栓Stud	GB3098.18.8级 GB3098.1 A2-70级
16	六角螺母Hexagonal nut	GB3098.18.8级 GB3098.1 A2-70级
17	弹簧垫圈Spring washer	WCB,316
18	铭牌Sign	316
19	铭牌铆打Sign the rivet	316

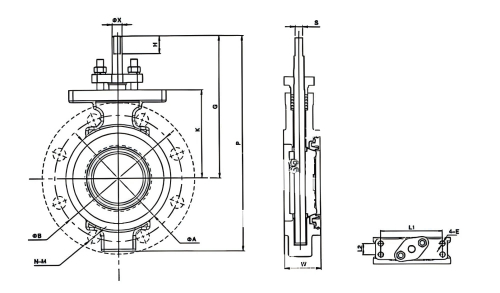

尺寸参数 Size parameters (CLASS150)

NPS	DN	K	G	P	W	A	B	L1	L2	E	N	M	H	X	S
2"	50	80	124	186	43	96	120.7	125.5	22.35	M10	4	φ19	14	φ11.8	9
2.5"	65	111	193	276	49	118	139.7	125.5	22.35	M10	4	φ19	27	φ15.5	11.2
3"	80	121	203	297	49	132	152.4	125.5	22.35	M10	4	φ19	27	φ15.5	11.2
4"	100	133	215	325	54	157	190.5	125.5	22.35	M10	8	φ19	27	φ15.5	11.2
5"	125	135	217	344	57	186	215.9	125.5	22.35	M10	8	φ22	27	φ15.5	11.2
6"	150	152	234	377	57	217	241.3	125.5	22.35	M10	8	φ22	27	φ18.8	13.9
8"	200	187	269	441	64	274	298.5	125.5	22.35	M10	8	φ22	27	φ21.9	15.9
10"	250	232	325	527	71	330	362	142.75	37.34	M12	12	φ26	28	φ28.2	20.6
12"	300	260	357	595	81	386	431.8	142.75	37.34	M12	12	φ26	33	φ34.7	23.7

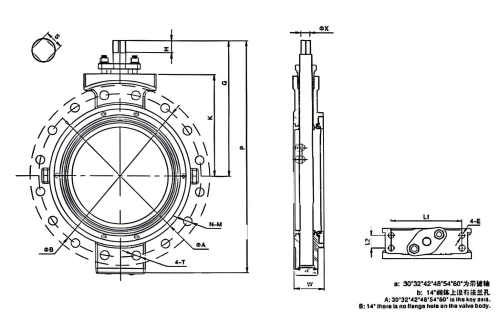

尺寸参数 Size parameters (CLASS150)

NPS	DN	K	G	P	W	A	B	L1	L2	E	N	M	T	H	X	S
14”	350	309	397	670	92	425	476.3	142.75	37.34	M12	12	φ29	b	35	φ34.93	28.7
16"	400	331	419	719	102	470	539.8	203.2	82.55	M16	16	φ29	30	41	φ46	41.4
18”	450	356	449	772	114	533	577.9	203.2	82.56	M16	16	φ32	33	41	φ47	41.4
20"	500	377	470	833	127	590	635	203.2	82.55	M16	20	φ32	M30	41	φ54.1	41.4
24”	600	489	604	1058	154	692	749.3	254	82.55	M20	20	φ35	M33	50.8	φ70	50.8
28"	700	570	727	1251	165	800	863.6	254	82.55	M20	28	φ36	M33	50.8	φ83	51
30”	750	570	783	1307	190	905	914.4	254	107.7	M20	28	φ36	M33	82	φ55	a
32"	800	570	783	1307	190	905	977.9	254	107.7	M20	28	φ42	M39	82	φ55	a
36”	900	660	794	1395	184	1014	1085.8	254	107.7	M20	32	φ42	M39	50.8	φ95	50.8
42"	1050	737	1067	1731	222	1185	1257	330.2	177.8	M20	36	φ42	M39	a	φ102	a
48”	1200	845	1130	1953	254	1350	1422	381	177.8	M20	44	φ42	M39	a	φ127	a
54"	1350	953	1248	2178	267	1522	1594	381	177.8	M20	44	φ48	M45	a	φ152	a
60”	1500	1045	1391	2423	279	1687	1759	381	177.8	M27	52	φ48	M45	a	φ152	a
