What is pneumatic actuator?

2023-10-05 11:04:51

Henan MF Valve Co., Ltd. is a professional manufacturer of high quality valves, and also provides various valve accessories to provide customers with a full range of services and supports.

Pneumatic actuator is a device that uses the pressure of compressed air to drive the opening and closing or regulating valves. They are mainly composed of cylinders, pistons, gear shafts, end covers, seals, screws, etc. composition.

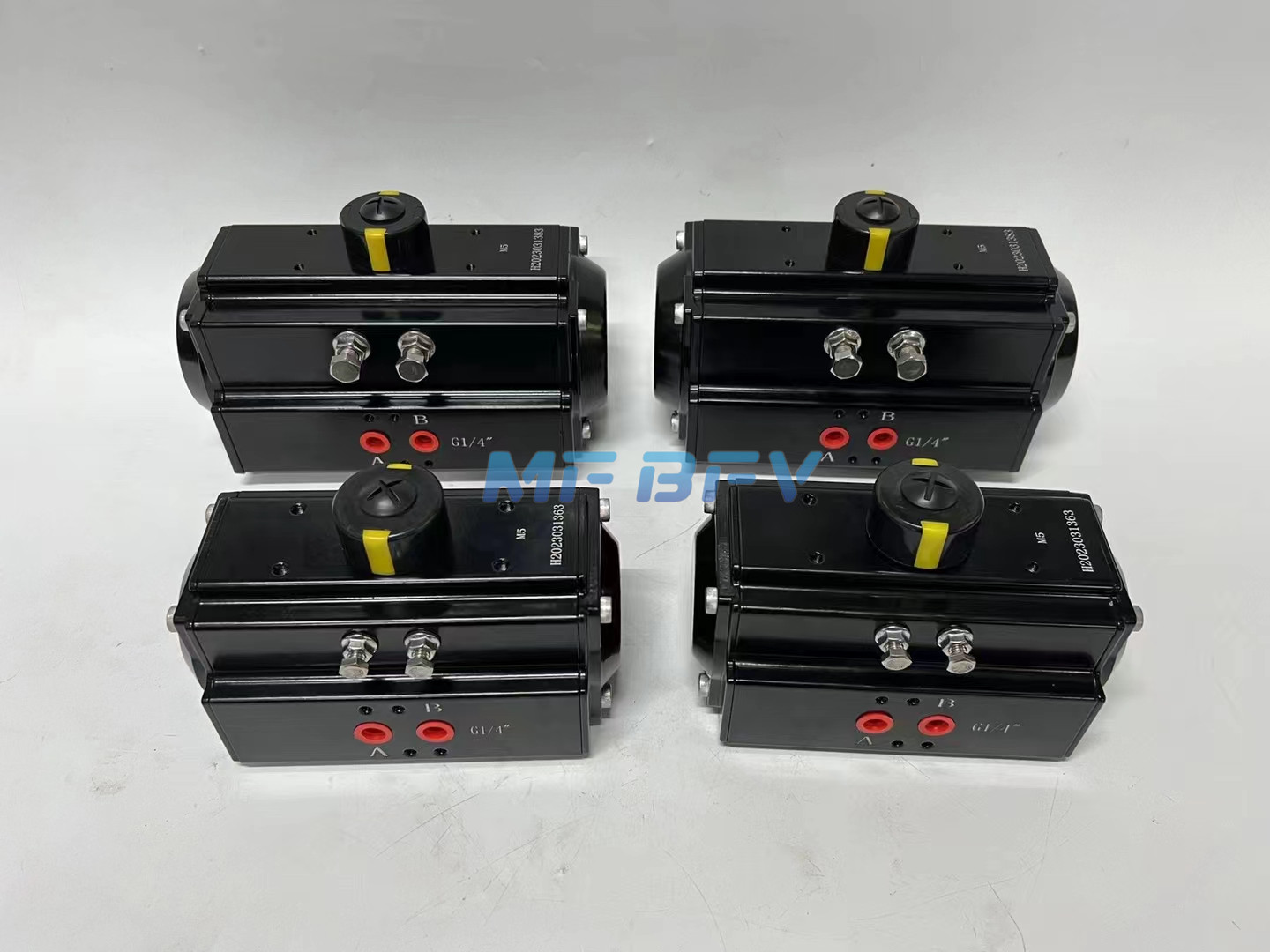

MF VALVE can produce and supply DA32/ DN40/ DN52/ DN63/ DN75/ DN83/ DN92/ DA105. The connection dimensions comply with the requirements of ISO 5211.







Working Principle

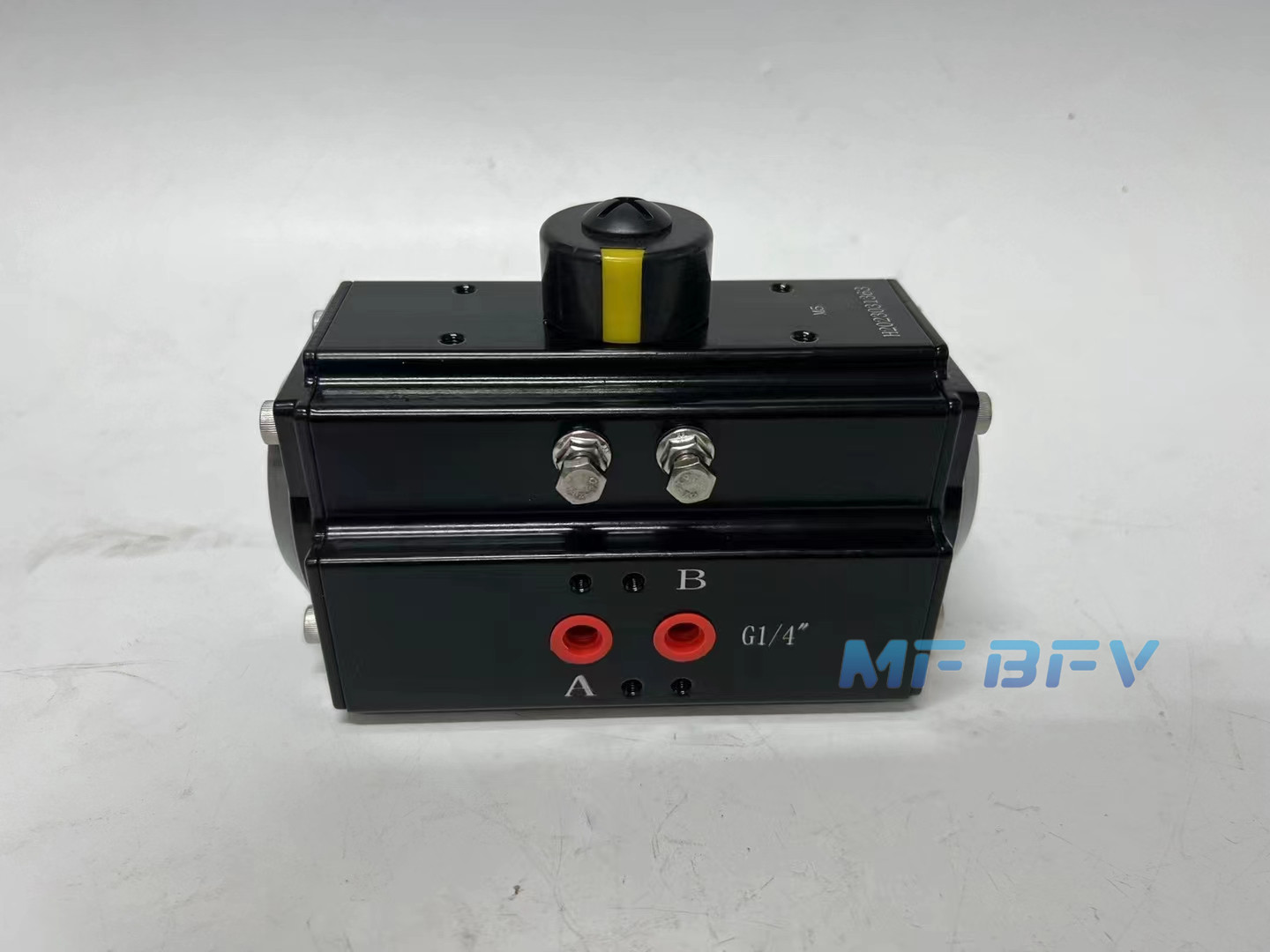

A port enters into the air, the compressed air pushes the piston outwardto make the actuator output shaft rotate counterclockwise (0°-90°), and the B port exhausts.

B port intakes, the compressed air pushes the piston inward to make the actuator output shaft rotate clockwise (90°-0°), and the A port exhausts.





A port enters the air, and the compressed air pushes the piston outward to make the actuator output shaft rotale clockwise(0°-90°) and the B port exhausts.

B port intakes, compressed air pushes the piston inward to make the actuator output shaft rotate counterclockwise (90°-0°), A port exhausts.



If you wanna know more about gate valve, welcome to contact ME VALVE!
