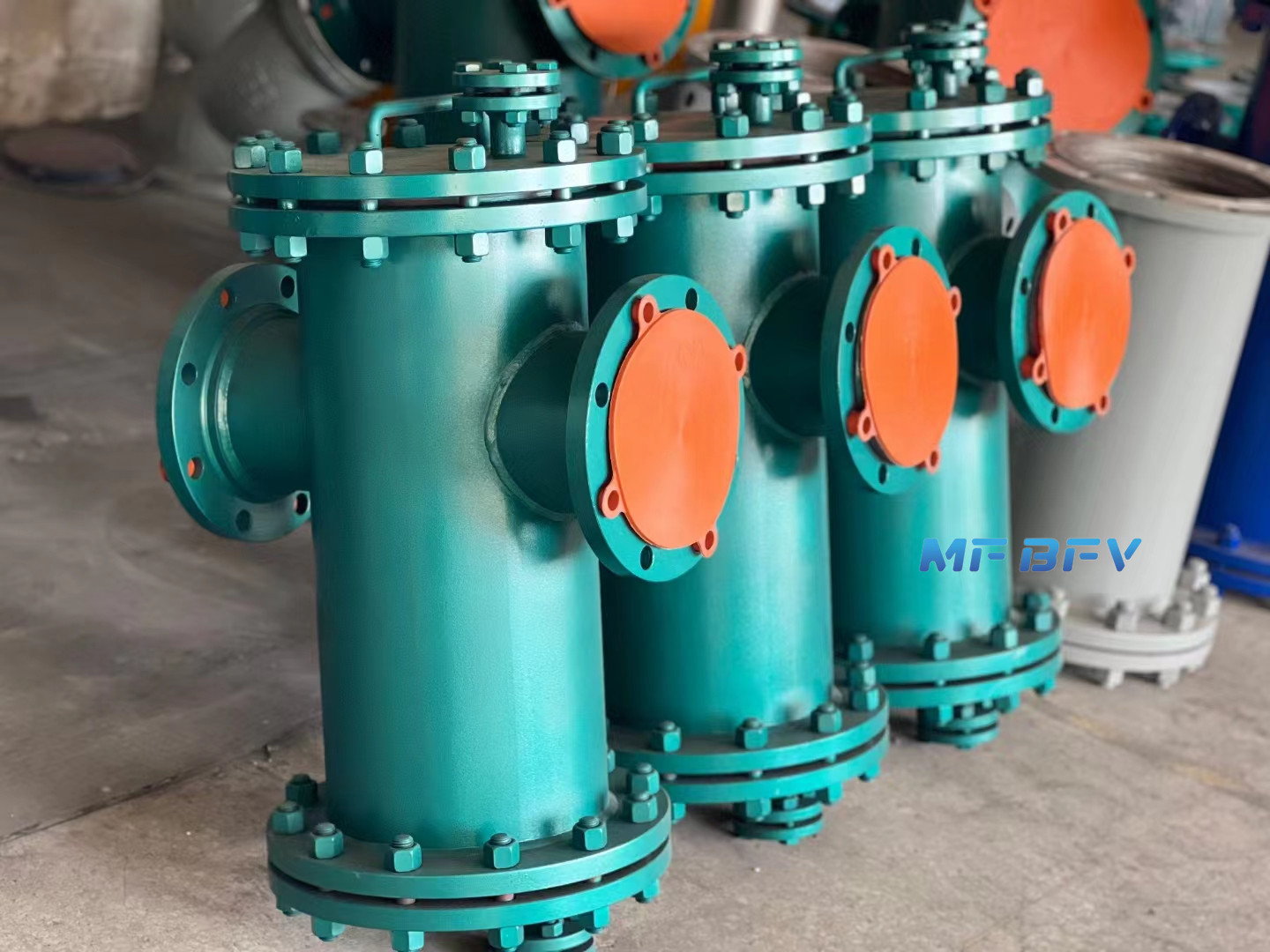

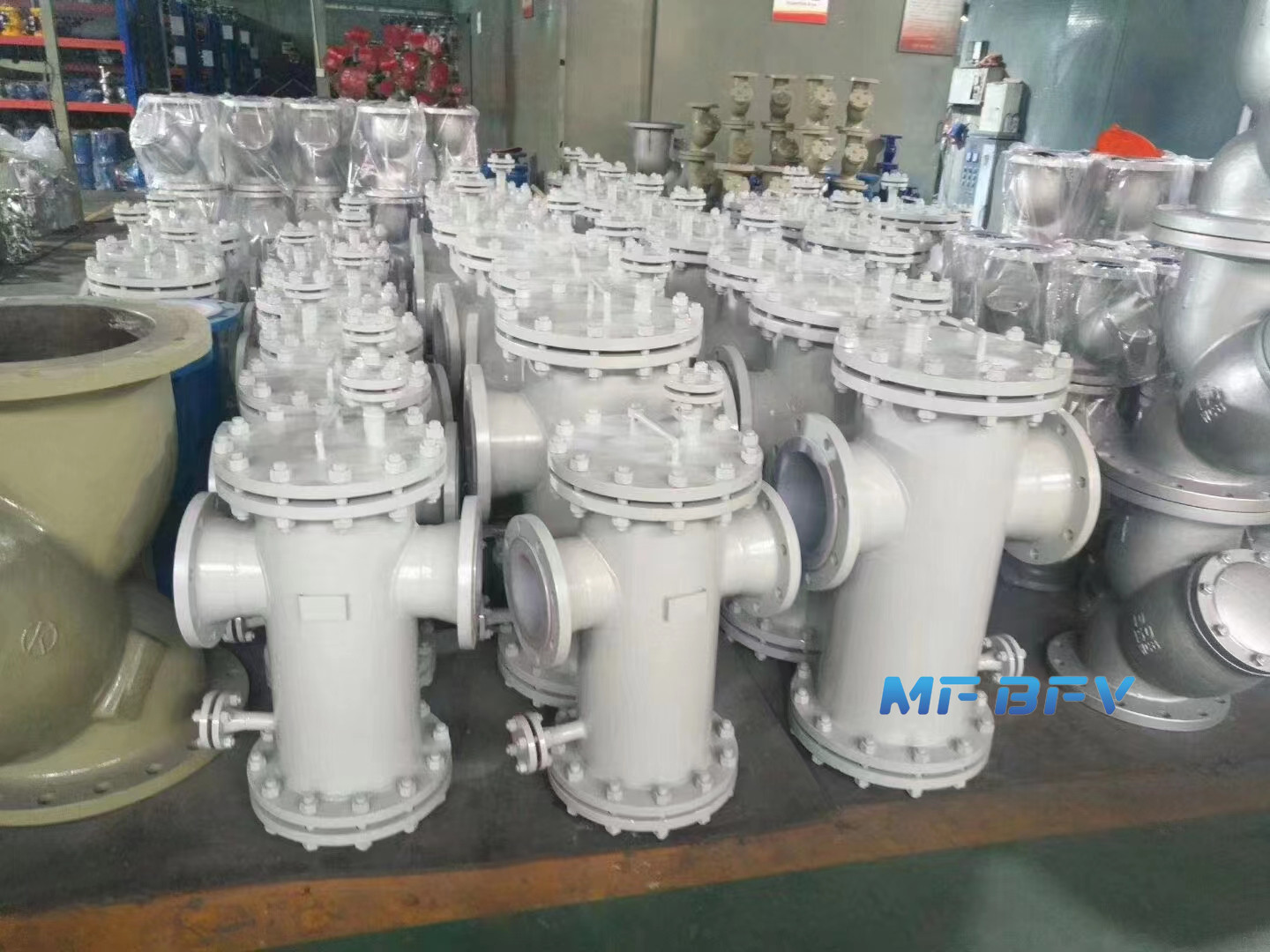

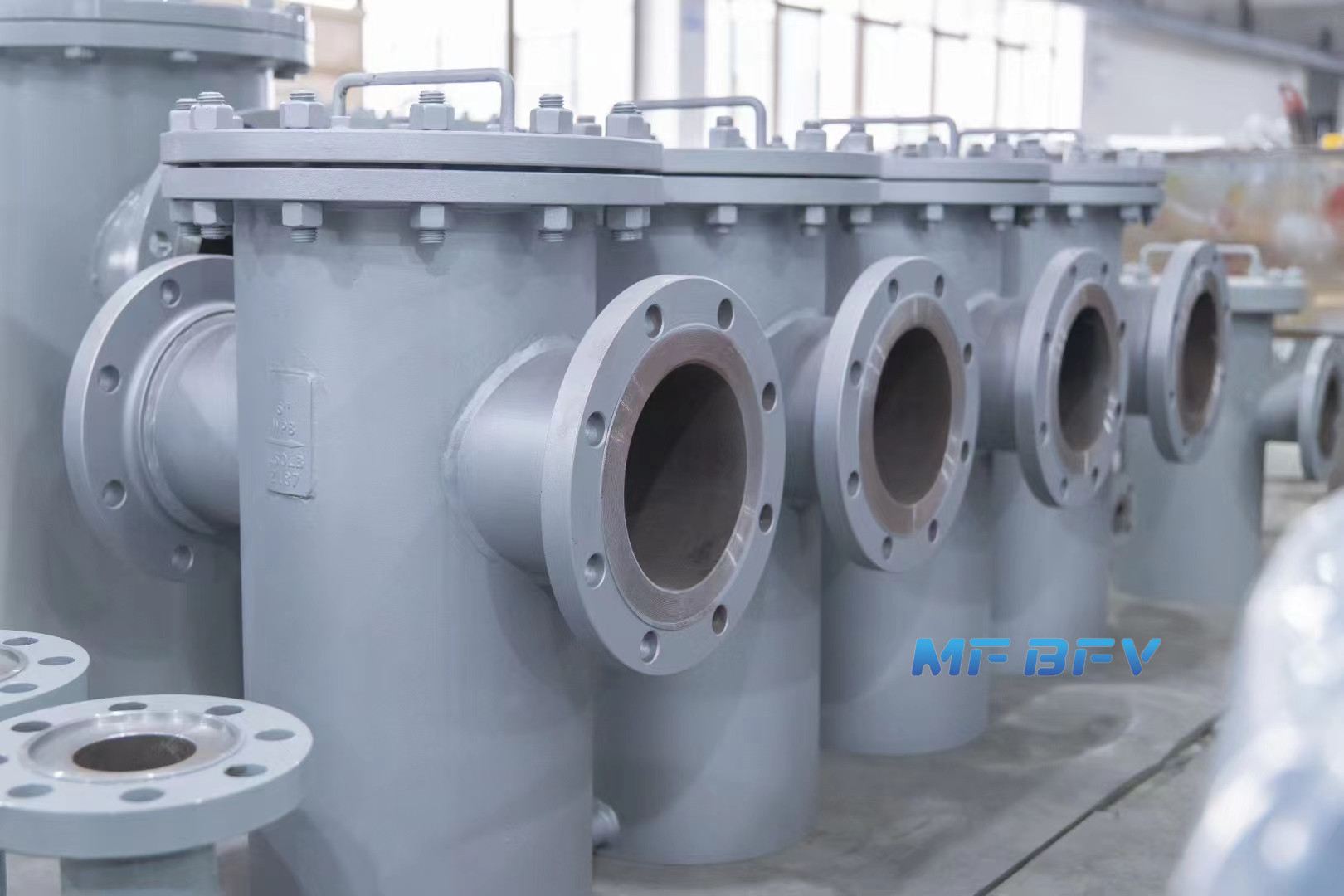

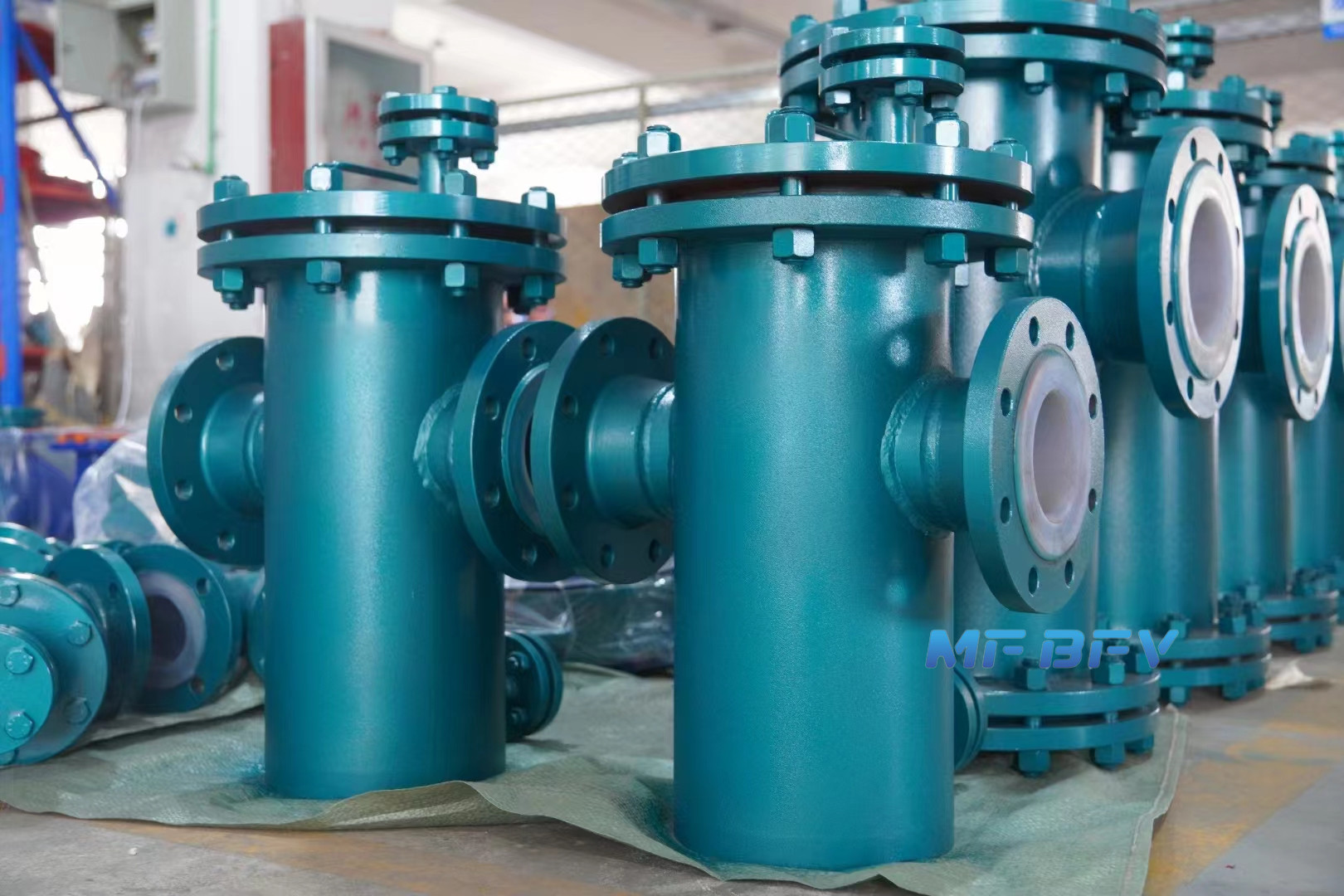

Basket strainer can filter impurities from the fluid, and the filtration area is larger than the diameter pipe area about twice or triple, which is also larger than Y and T strainer. The shape of the filter looks like a basket, so it is called basket strainer.
♦ Working temperature: -80℃-+450℃
♦ Nominal pressure: PN10-PN50
♦ Shell material: carbon steel, stainless steel (SUS304, SUS304L, SUS316, SUS316L), PTFE LITED.

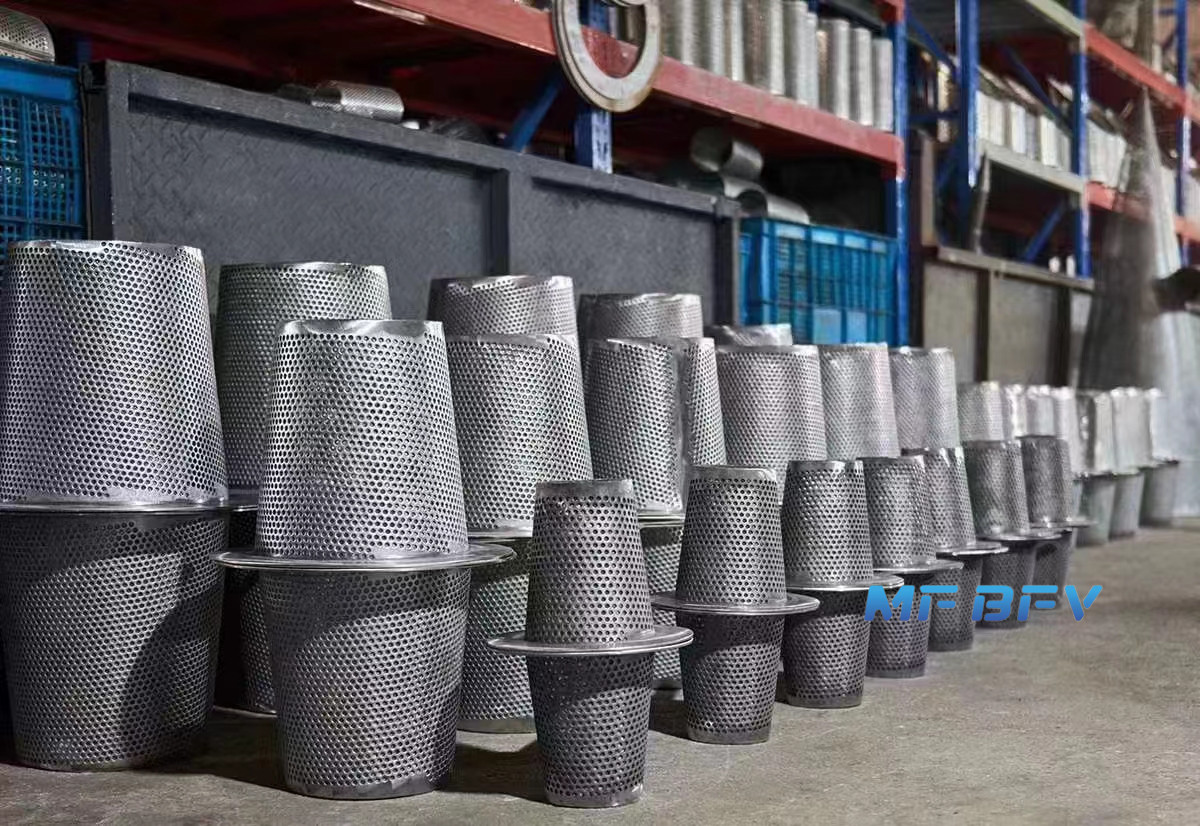

♦ Filter material: stainless steel.
♦ Sealing ring material: oil-resistant asbestos rubber, metallic spiral wound gasket, PTFE.
♦ Working temperature: carbon steel: -40~380℃
stainless steel: -80~450℃.
♦ Connection type: flange connection, female thread, welding.
♦ Flange standards: GB, JB, ANSI, JIS and other standards.
Applicable working condition:
a. Weakly corrosive materials in chemical and petrochemical production, such as water, ammonia, oil, hydrocarbons, etc.;
b. Corrosive materials produced in chemical industry, such as caustic soda, soda ash, concentrated and dilute sulfuric acid, carbonic acid, acetic acid, ester acid, etc.;
c. Low-temperature materials in refrigeration, such as: liquid methane, liquid ammonia, liquid oxygen and various refrigerants;
d. Materials with hygienic requirements in light industrial food and pharmaceutical production, such as: beer, beverages, dairy products and medical supplies, etc.
