| Face to Face: |
API609 |
| Test and Inspection: |
API598 |
| Top Flange Standard: |
ISO5211 |
| Epoxy Spraying: |
Silver or customized |
| Documents Service: |
FORM E Certificate of Origin/Certificate of Material/Pressure Testing Report |
| Working Temperature: |
-20℃～120℃ |
|
Nominal Pressure: |
PN10/PN16/CLASS125/CLASS150/10K/5K |
|
Available Material: |
|
| Body Material: |
Stainless Steel(CF8/CF8M/CF3/CF3M) |
| Disc Material: |
CF8/CF8M/CF3/CF3M/1.4529/AL.Bronze C954 or C958 |
| Shaft Material: |
SS304/SS316/SS431 |
| Seat Material: |
PTFE |
|
Quality Standard: |
|
| Design & Manufacture Standard: |
API 609 |
| Face to Face Dimension Standard: |
API 609 |
| Test & Inspection Standard: |
API 598 |
|

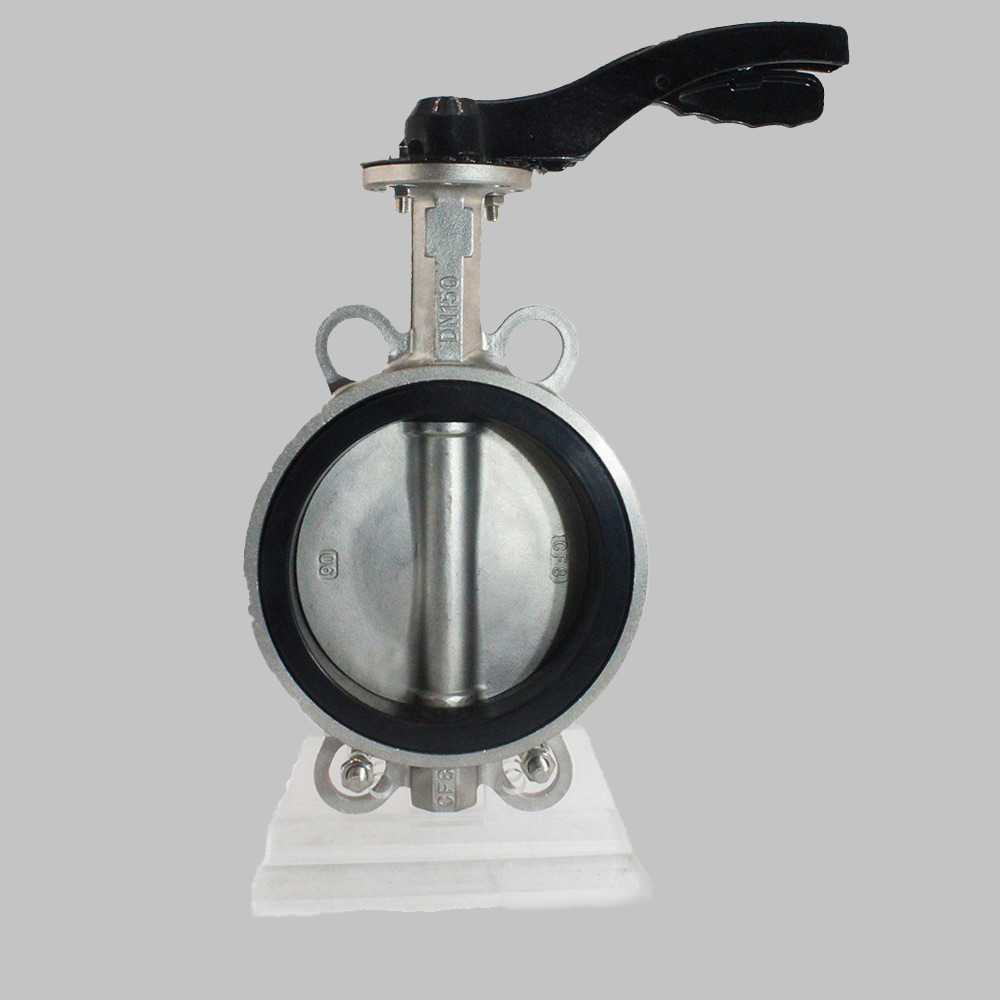

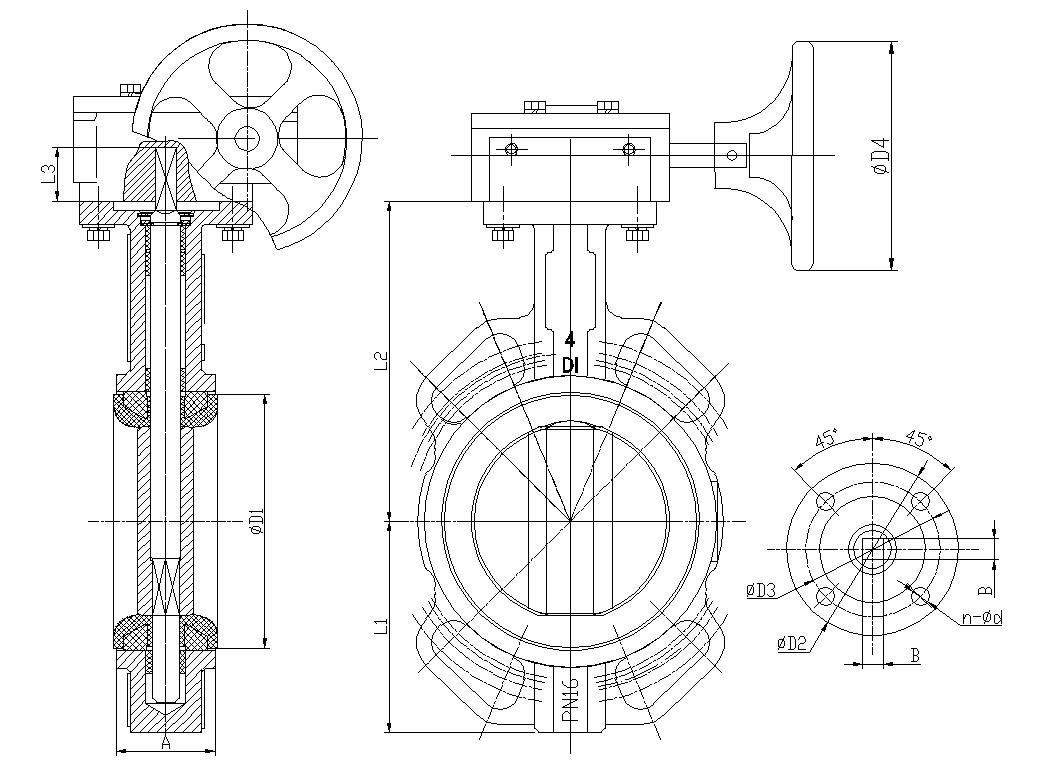

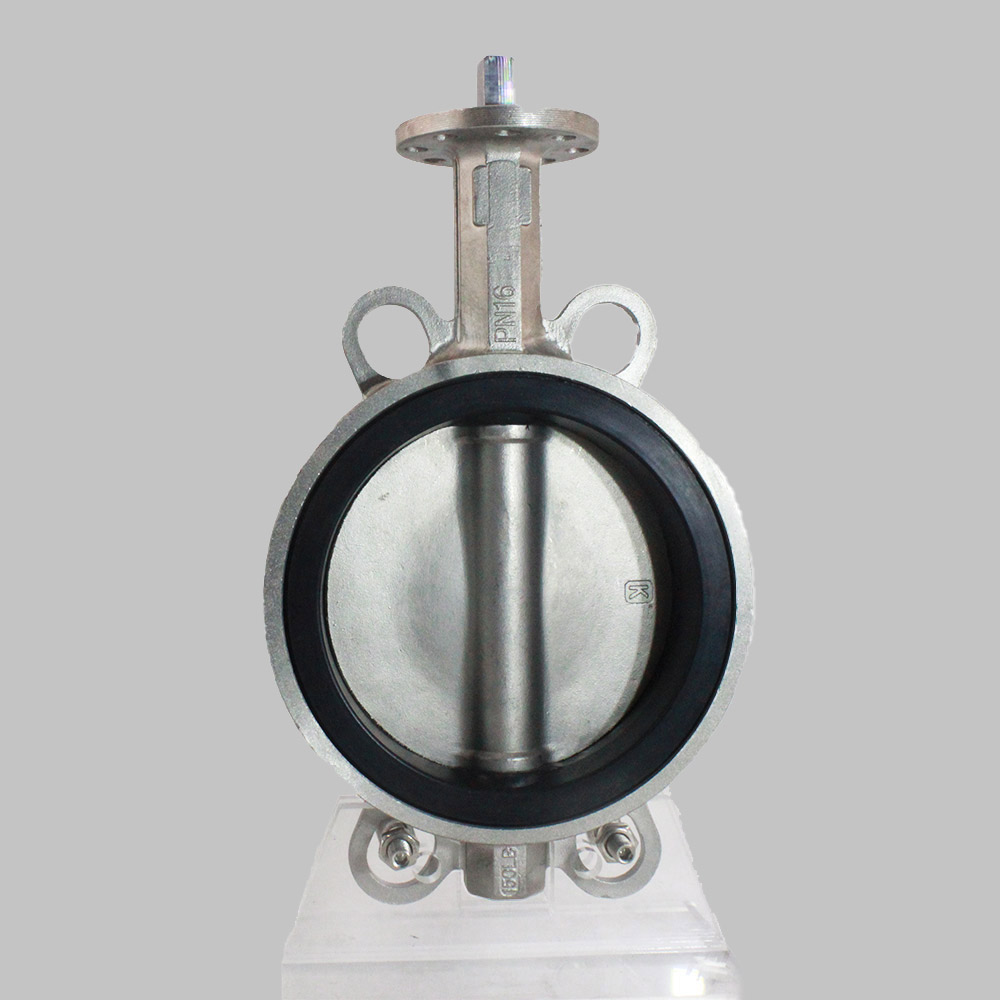

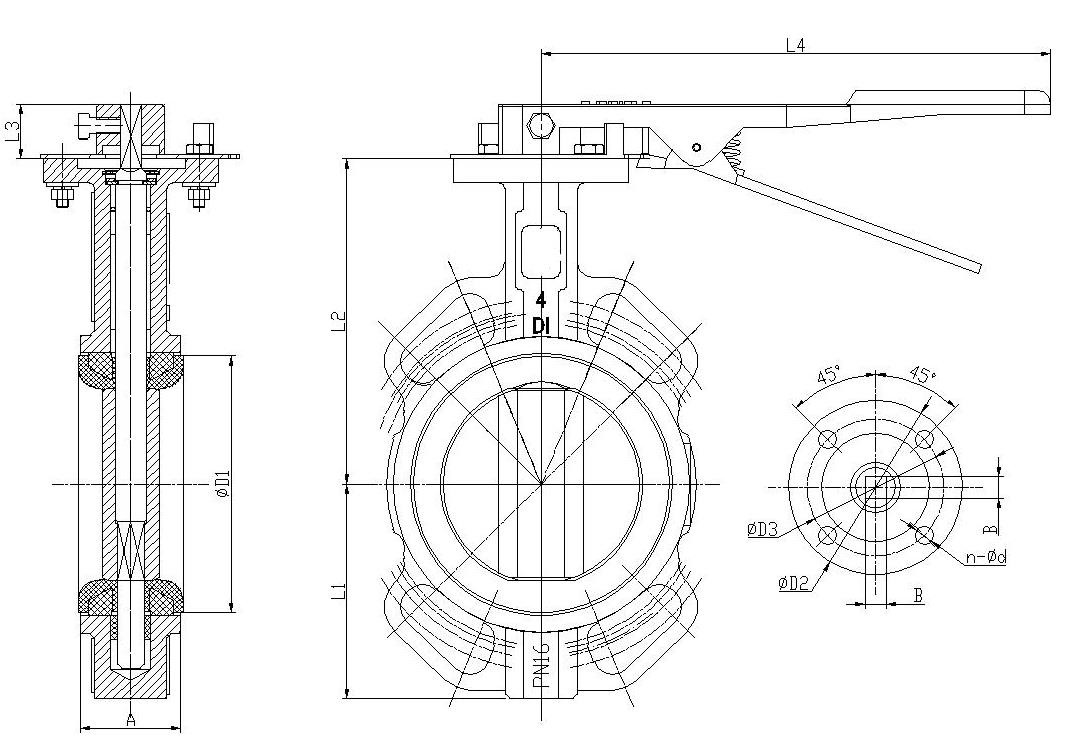

DN |
A |
D1 |
L1 |
L2 |
L3 |
B |
φD2 |
φD3 |
n-φd |
L |
|
|
1.5″ |
DN40 |
33 |
69 |
65 |
127 |
25 |
9 |
65 |
50 |
4-8 |
249 |
|
2″ |
DN50 |
42 |
73.3 |
75 |
129 |
25 |
9 |
65 |
50 |
4-8 |
249 |
|
2.5″ |
DN65 |
44 |
86 |
82 |
136 |
25 |
9 |
65 |
50 |
4-8 |
249 |
|
3″ |
DN80 |
45 |
100.9 |
99 |
153 |
25 |
9 |
65 |
50 |
4-8 |
249 |
|
4″ |
DN100 |
51.5 |
132 |
110 |
167 |
28 |
11 |
90 |
70 |
4-10 |
283 |
|
5″ |
DN125 |
54 |
156 |
125 |
193 |
28 |
14 |
90 |
70 |
4-10 |
283 |
|
6″ |
DN150 |
55 |
185 |
145 |
209 |
28 |
14 |
90 |
70 |
4-10 |
283 |
|
8″ |
DN200 |
59 |
235 |
170 |
251 |
33 |
17 |
125 |
102 |
4-12 |
390 |
|
10″ |
DN250 |
66 |
289 |
210 |
280 |
33 |
22 |
125 |
102 |
4-12 |
390 |
|
12″ |
DN300 |
76 |
341 |
240 |
312 |
33 |
22 |
125 |
102 |
4-12 |
540 |
|
DN |
A |
D1 |
L1 |
L2 |
L3 |
B |
φD2 |
φD3 |
n-φd |
φD4 |
|
|
1.5″ |
DN40 |
33 |
69 |
65 |
127 |
25 |
9 |
65 |
50 |
4-8 |
135 |
|
2″ |
DN50 |
42 |
73.3 |
75 |
129 |
25 |
9 |
65 |
50 |
4-8 |
135 |
|
2.5″ |
DN65 |
44 |
86 |
82 |
136 |
25 |
9 |
65 |
50 |
4-8 |
135 |
|
3″ |
DN80 |
45 |
100.9 |
99 |
153 |
25 |
9 |
65 |
50 |
4-8 |
135 |
|
4″ |
DN100 |
51.5 |
132 |
110 |
167 |
28 |
11 |
90 |
70 |
4-10 |
135 |
|
5″ |
DN125 |
54 |
156 |
125 |
193 |
28 |
14 |
90 |
70 |
4-10 |
135 |
|
6″ |
DN150 |
55 |
185 |
145 |
209 |
28 |
14 |
90 |
70 |
4-10 |
135 |
|
8″ |
DN200 |
59 |
235 |
170 |
251 |
33 |
17 |
125 |
102 |
4-12 |
270 |
|
10″ |
DN250 |
66 |
289 |
210 |
280 |
33 |
22 |
125 |
102 |
4-12 |
270 |
|
12″ |
DN300 |
76 |
341 |
240 |
312 |
33 |
22 |
125 |
102 |
4-12 |
270 |
|
14″ |
DN350 |
76 |
372 |
271 |
327 |
45 |
22 |
125 |
102 |
4-12 |
270 |
1.High performance seat rubber(50% rubber content).
2.EPDM soft seated which can be replaced when demaged.
3.Valve switch life-time is more than 30000 times.
4.Axial seal(O-ring+oil seal,double seal structure).
5.Adopt epoxy spraying(stronger adhesion and good weather resistance).
6.Ductile Iron Lever&Worm Gear(stronger corrosion resistance).
7.Pneumatic Actuator adopts double piston rack structure.
8.Electric Actuator supplying voltage: 380V,220V or customized.
9.Pressure Testing Report,Certificate of Material and FORM E Certificate Of Origin can be provided.
Chemical Indsutry,Petroleum, Water treatment, HVAC, Urban construction, Textile & Papermaking
Helping you with our 10 years experiences of valve products industry
